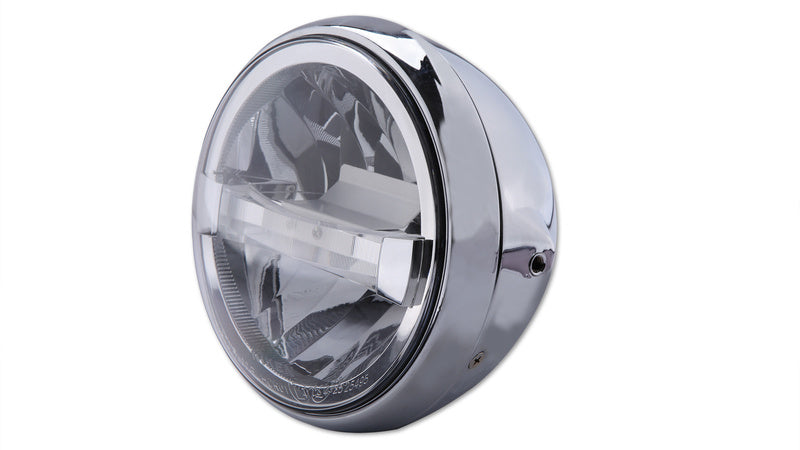

HIGHS GBR-STYLE TYP 4 M-HEADLIGHT, CHR
€327,68
Preço de saldo
€327,68
Preço normal
Saltar para a informação do produto
LED HIGHSIDER pro British-Style 7"" Type 4 with TFL, metal housing, clear glass, round, side mounting, E-marked.
Puristically shaped headlight with metal housing for lateral mounting. The simple design is ideal for classics, roadsters and customized bikes.
The chrome-plated reflector with clear glass also has a high beam, low beam, parking and daytime running light function. The daytime running light and position light are mounted in a central strip, so that a very beautiful optical image is created – the dipped beam lights up above the strip, the main beam light correspondingly below. The reflector emits an asymmetrical luminous flux – only approved for right-hand traffic -, E-examined.
Dimensions:
Housing diameter (hole spacing at the same time): 190 mm
Heating insert diameter: 178 mm
Housing depth: 140 mm
Distance between mounting holes – Housing front edge: approx. 47 mm
Distance between mounting holes – Housing end: approx. 80 mm
Diameter Cable guide: 35 mm
Fixing: lateral with M8 threaded bolts
Connections:
Black cable = ground (-)
Blue cable = low beam (+), power consumption at 12V: 1.8A, 22W
Yellow cable = high beam (+), power consumption at12V: 1,3A, 13W
TFL:
Black cable = ground (-)
Red cable = daytime running light (+), power consumption at 12V: 1,2A, 14W
White cable = position light (+), power consumption at 12V: 0,2A, 2,4W
Scope of supply: 1 piece incl. 3 pin connector
Optional available: headlight insert TYPE 4, chrome, art. no.No.: 1108027
Notes:
Use asymmetrical, approved for right-hand traffic only.
The enclosed 3-pole standard plug must be installed by the customer after reflector installation.
View of plug contacts:
Driving light (yellow) = right-hand
Dipped beam (blue) = top
ground (black) = left-hand
