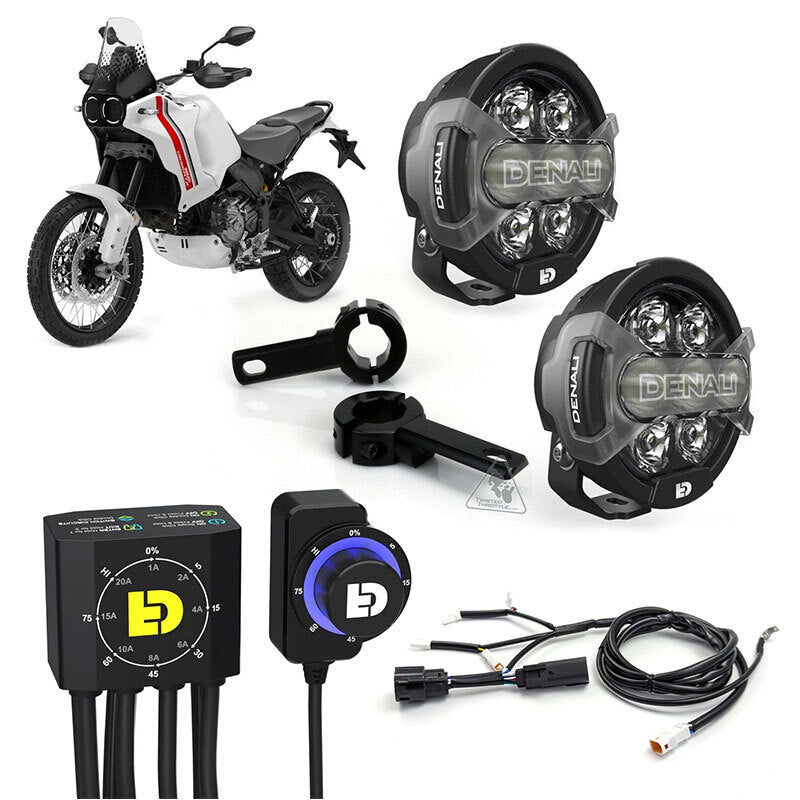

DENAL DIALDIM KIT DUCATI D7PRO

DENALI DialDim™ Kit D7Pro consisting of:

DENALI D7 LED Additional Lighting 10W - By Unit (DNL.D7P.050) (2x)

DENALI DialDim Lighting Controller (1x)

DENALI Plug & Play DialDim Wiring Adapter (1x)

DENALI Frame & Crash Bars Light Mount Ø21-29mm Black (1x)

DESCRIPTION

DENALI D7Pro LED Additional Lighting - By Unit (DNL.D7P.050) (2x)

Denali is thrilled to introduce the highest performing, and most feature-rich 4-inch driving light ever released! Have you ever wondered what 23,000 lumens does to a dark landscape? It will blow your mind !

Picture the most powerful driving light ever built, then add a flood beam, spot beam, and hybrid beam, a multi-color DRL mode, two fully dimmable circuits, and the option to change the beam shape and beam color on the fly. That's the D7 PRO, and it looks even better than it sounds.

The D7 PRO features a split dual-circuit design that allows fully independent on/off and dim of a center flood beam and outer spot beam. Use the revolutionary DialDim Switch or CANsmart Controller to effortlessly control all lighting functions from a single halo dimmer switch or the vehicle OEM handlebar controls.

Add to that, the patent pending X-Lens system which allows you to change the center flood or DRL beam color to white, amber, or selective yellow on-the-fly giving riders more flexibility and functionality than ever before.

Last but not least, the D7 PRO has a "DRL Boost Mode" which allows you to run the center optics as a dim DRL or dial it up to 100% up to create a high-power flood beam. The innovative center optics can also flash in sync with your turn signals when paired with the amber X-Lenses.

D7 PRO Pod Features

HiDrive LEDS 11,900 Lumens Per Pod - Seven 14-Watt LEDs combined with the proprietary TIR optics make this the brightest light under 4.5” ever released

Dual-Beam Technology - Independent control (and dimming) of center flood beam, outer spot beam, or all-on hybrid beam

Modular Snap-On X-Lens - Enables customizable beam shape and color on-the-fly. Interchange able center flood beam color in white, amber, or selective yellow

DRL Boost Mode - Drive the center LEDs as a low intensity DRL, or dial up the power to generate a massive high-intensity flood beam

Integrated Turn Signal Mode - Run the center flood optics as an amber DRL or flood light that will flash in sync with the vehicle turn signals

CANsmart & DialDim Compatible - Control both circuits on a single DialDim switch or unlock over 20 features & settings using the CANsmart accessory manager

D7 PRO Specs (Single Pod)

LED's: (7x) 14 Watt Cree XML3

Power Draw:  98 Watts / 8 Amps

Raw Lumens: 11,900

Spot Beam Distance: 1250 Feet (380 Meters)

Flood Beam Width: 250 Feet (75 Meters)

DataDim™ Compatible: Yes

Operating Voltage: 9-32 VDC

Pod Size: 4.4" Round x 2.9" Deep

Pod Weight: 1.8 lbs

IP68 & 69K Waterproof, Submersible, & High-pressure Spray

E Mark Approved Spot Lens (ECE R112 Driving Beam)

D7 PRO Light Pod (DNL.D7P.050) includes:

(1x) D7 PRO Light Pod (w/ mounting hardware)

(3x) X-Lenses (Clear, Amber, & Selective Yellow)

(1x) 2-into-1 Single-Circuit Wiring Adapter

DENALI DialDim Lighting Controller (1x)

DialDim™ Lighting Controller

Allows to sell a complete solution with easy control of all light functions

Independently turn on/off and dim two sets of auxiliary lights from a single switch

LED halo switch displays your exact settings

Unlock intelligent flash features that can cancel your aux lights with your turn signal, flash your aux lights as a turn signal, or strobe your lights when you sound your horn.

On/Off & Dim

Independently control two sets of lights on/off and intensity level using the single DialDim™ Switch. The blue halo controls light set one and the green halo controls light set two. Double click to switch between the two circuits.

High/Low Sync

Your auxiliary lights will automatically switch between your selected dim setting to full intensity with the factory high beam switch. Simply connect the blue input wire to your vehicle high beam circuit to enable this feature.

Stealth Mode

A clever 0% dim setting on the switch allows your lights to be "off" during normal driving conditions but will jump to 100% intensity with your vehicle high beam switch. The lights will also react to turn signal and horn inputs in this mode but will remain off when no inputs are detected.

Cancel with Turn Signal

When enabled the main lights (blue circuit 1) will cancel in sync with your signal to prevent "washing out" your factory turn signal. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Flash as Turn Signal

When enabled your amber visibility lights (green circuit 2) will flash in sync with your factory turn signals. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Strobe with Horn

When enabled your auxiliary lights on both circuits will strobe at 4Hz when you sound your horn. Simply connect the green input wire to your vehicle horn circuit to enable this feature.

Electronically Fused Circuits

Both light circuits are electronically fused and can be set right from the switch itself! The halo will illuminate red to notify you when a circuit fused is tripped.

Voltage Display Indicator

Upon vehicle startup, the switch halo will flash green to indicate a healthy battery voltage, or flash red to indicate a battery voltage that is below 11.8v.

Low Voltage Cutoff

If battery voltage drops below 10.8v the lights will not power on preventing you from being stranded. The switch halo will flash 4 red LEDs to indicate the low voltage condition.

DENALI Plug & Play DialDim Wiring Adapter (1x)

This wiring adapter enables plug-&-play connection between our standard DialDim Lighting Controller and the Ducati DesertX. To install, simply connect the white connector to our DialDim Controller and the remaining connectors in line at the DesertX headlight, horn, and turn signal connectors.

DENALI Frame & Crash Bars Light Mount Ø21-29mm Black

This DENALI Motorcycle Engine Guard/Crash Bar Light Mount Kit allows fitment of any DENALI LED Lights to engine guards, crash bars, or any tube 21mm-29mm in diameter. These light mounts have a unique octagonal inner profile that allow the clamps to securely grip a wide range of tube diameters and include an optional, fully rotatable mounting shelf to create a super versatile and robust light mounting solution.

These clamps are intended for mounting lights to OEM or aftermarket crash bars commonly found on adventure and dual sport motorcycles. The clamps allow the lights to be positioned inside of the crash bars, ensuring they will be protected in a tip over.

Features:

Adjustable grip range (21mm-29mm)

Rotatable mounting shelf allows 4th axis of adjustability

Lights can be mounted to shelf or directly to clamp

Accepts M8 bolt from light pod

Billet aluminum with black anodized finish

Fits all standard SW-MOTECH, R&G, Givi, Kappa, Hepco-Becker, Krauser, Touratech, and BMW original crashbars

Fits AltRider crashbars with 25mm (1in) diameter tubing; not for use on AltRider crashbars with 32mm (1.25in) diameter tubing

Included:

(2) Mounting clamps

(2) Rotatable mounting shelves

Assembly hardware

Installation instructions
