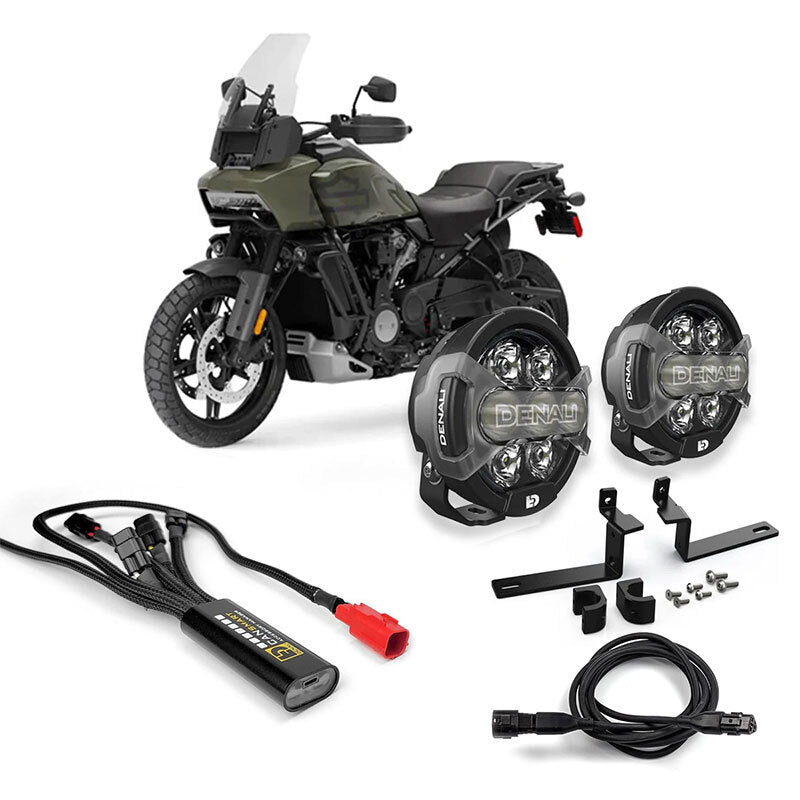

DENAL CANSMART KIT HARLEY D7PRO

DENALI Dialdim Kit D7PRO Universal consisting of:

DENALI D7 Pro Light- By Unit (DNL.D7P.050) (2x)

DENALI Upper Driving Light Mounting Kit (1x)

DENALI CANsmart™ Controller GEN II

DENALI Extension Cable 1350 mm (1x)

Product Description

DENALI D7 Pro Light- By Unit (DNL.D7P.050) (2x)

After 2 years in the making, we are thrilled to introduce the highest performing, and most feature-rich 4-inch driving light ever released! Have you ever wondered what 23,000 lumens does to a dark landscape? It will blow your mind, and we haven't even started yet.

Picture the most powerful driving light ever built, then add a flood beam, spot beam, and hybrid beam, a multi-color DRL mode, two fully dimmable circuits, and the option to change the beam shape and beam color on the fly. That's the D7 PRO, and it looks even better than it sounds.

The D7 PRO features a split dual-circuit design that allows fully independent on/off and dim of a center flood beam and outer spot beam. Use our revolutionary DialDim Switch or CANsmart Controller to effortlessly control all lighting functions from a single halo dimmer switch or the vehicle OEM handlebar controls.

Add to that, our patent pending X-Lens system which allows you to change the center flood or DRL beam color to white, amber, or selective yellow on-the-fly giving riders more flexibility and functionality than ever before.

Last but not least, the D7 PRO has a "DRL Boost Mode" which allows you to run the center optics as a dim DRL or dial it up to 100% up to create a high-power flood beam. The innovative center optics can also flash in sync with your turn signals when paired with the amber X-Lenses.

D7 PRO Pod Features

HiDrive LEDS 11,900 Lumens Per Pod - Seven 14-Watt LEDs combined with our proprietary TIR optics make this the brightest light under 4.5” ever released

Dual-Beam Technology - Independent control (and dimming) of center flood beam, outer spot beam, or all-on hybrid beam

Modular Snap-On X-Lens - Enables customizable beam shape and color on-the-fly. Interchange able center flood beam color in white, amber, or selective yellow

DRL Boost Mode - Drive the center LEDs as a low intensity DRL, or dial up the power to generate a massive high-intensity flood beam

Integrated Turn Signal Mode - Run the center flood optics as an amber DRL or flood light that will flash in sync with the vehicle turn signals

CANsmart & DialDim Compatible - Control both circuits on a single DialDim switch or unlock over 20 features & settings using the CANsmart accessory manager

D7 PRO Specs (Single Pod)

LED's: (7x) 14 Watt Cree XML3

Power Draw:  98 Watts / 8 Amps

Raw Lumens: 11,900

Spot Beam Distance: 1250 Feet (380 Meters)

Flood Beam Width: 250 Feet (75 Meters)

DataDim™ Compatible: Yes

Operating Voltage: 9-32 VDC

Pod Size: 4.4" Round x 2.9" Deep

Pod Weight: 1.8 lbs

IP68 & 69K Waterproof, Submersible, & High-pressure Spray

E Mark Approved Spot Lens (ECE R112 Driving Beam)

DENALI Upper Driving Light Mounting Kit (1x)

This vehicle specific driving light mount allows you to mount any DENALI driving light in the optimum location on your Pan America, right below and to the outside of your headlight. The design features a heavy-duty steel bracket and machined clamp assembly that securely mounts to the Pan America fairing support bar.

The bracket has an M8 mounting hole for the light pods and includes all necessary mounting hardware.

Product Description

DENALI CANsmart™ Controller GEN II

Harness the flexibility and intelligence of your Norden's CANbus electrical system to make installation of accessories drastically easier with the new and improved DENALI CANsmart™ Controller GEN II.

The DENALI CANsmart™ Controller provides plug-n-play installation and integrated control of up to four accessories to enable dozens of customizable settings that can be controlled right from your Norden's switch cluster or the CANsmart™ Accessory Manager Software.

Gen II - More Features, More Power, More Versatile

Unlike the Gen I CANsmart, all four circuits of the Gen II can provide a full 10 amps of continuous power and each circuit can be configured to run any accessory type. The maximum power draw for the whole unit remains at 30 amps continuous. The Gen II also features a new auxiliary light setting where you modulate your auxiliary lights for added conspicuity.

Features

High/Low Sync - Set passing lamps and auxiliary lights to switch between a programmable high/low setting with the factory high beam switch.

ON/OFF and Dim - Independently control two sets of lights ON/OFF and change intensity level from your original vehicle switches.

Modulate Lights - Set auxiliary lights to modulate for increased visibility to other motorists.

Flash to Pass - Need to get someone's attention? Pulse your high beam switch three times and your auxiliary lights will strobe three times fast.

Plug & Play Horn Installation - Quickly and easily connect high power aftermarket horns like our SoundBomb™ without having to add an additional harness or relay.

Strobe with Horn - With this feature selected the CANsmart™ software will automatically strobe your passing lamps or auxiliary lights when you sound your horn. This feature works whether you have the factory horn or SoundBomb™ horn installed.

Deceleration Activated "Smart Brake" Technology - The CANsmart™ reads vehicle speed in real time to activate your auxiliary brake light during deceleration before you even touch the brake. You can adjust the sensitivity and minimum speed at which the Smart Brake Feature will activate.

Flash Pattern Braking - The CANsmart™ provides four different flash patterns that make our super bright auxiliary brake lights even noticeable to motorists behind you. You can set auxiliary brake lights to only flash under hard braking, flash continuously as your brake is applied or flash four times rapidly then hold steady (California legal flash rate).

Circuit Function Selector - The Circuit Function Selector in the CANsmart software will let you run any accessory of your choice on any of the four circuits. Click on a circuit icon to open the drop down menu and make your selection from the list of available circuit functions.

Switched Power Source - The CANsmart™ provides a universal "accessory" option which simply gives you clean switched 12V power. That means whatever accessory you connect to this circuit will turn on and off with your ignition.

Delay Time Out - You can also set the accessories on this circuit to have a delayed time out. This will keep them powered for up to 30 seconds after your turn off your bike.

On Board Power - The "accessory" circuit option is ideal for powering your GPS, phone, heated gear or any other electronic device.

If dimming your auxiliary lighting on-the-fly is important to you we recommend using our DialDim Lighting Controler which enables on-the-fly dimming and control of up to two sets of aux lights. Keep in mind that both products can be installed on your Norden together, so a logical setup would be two sets of aux lights on a DialDim while your horn, brake lights, DRLs, or other accessories can be powered from the CANsmart.

DENALI Extension Cable 1350 mm

Product Description

This light extension cable allows you to increase the length between DENALI driving light pods and DENALI wiring harnesses and controllers. This special light extension is included in the Universal DialDim Kit, but is also compatible with all other driving light wiring harnesses and CANsmart controllers.
