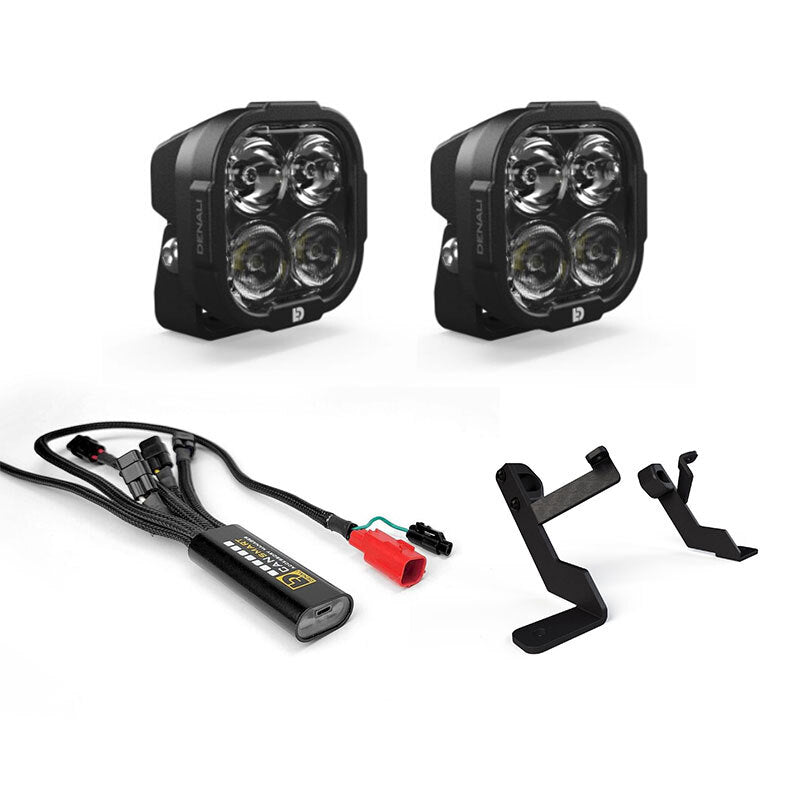

DENAL CANSMART KIT KTM DL4

DENALI Dialdim Kit DL4 Universal consisting of:

DENALI DL4 Hybrid Driving Light (White Lens) (2x)

DENALI Light Mount (1x)

DENALI DialDim Lighting Controller (1x)

DENALI DL4 Hybrid Driving Light (White Lens) (2x)

Product Description

Engineered based on a decade of customer feedback, our DL Series Driving Lights are purpose-built to deliver best-in-class beam performance, unmatched durability, and our signature dimming technology at a price point that is more approachable to new riders, younger riders, and our rapidly growing international customer base!

Be Seen, Ride Safe!

All DL Series Driving Lights are also available in amber & selective yellow lens options at no additional cost. DL Series lenses are robotically sealed to guarantee IP69K waterproof/submersible performance. DL Series lenses are not interchangeable.

Pod Size: 3" (7.6 cm) x 3" (7.6 cm)

Watts: 32 Lumens: 3,400

DENALI Frame & Crash Bars Light Mount Ø21-29mm Black (1x)

Product Description

Laser-cut from mild steel and powder coated black, this light mounting bracket is both strong and attractive. The kit allows fitment of any Denali LED Lighting Kit to your motorcycle.

 Features:

High strength laser cut steel

Attractive powder coated black

Durable & corrosion resistant finish

Compatible with all DENALI LED lighting kits

Fits securely to existing mounting location

Bolt-on installation without modifications

Simple & easy to install

DENALI DialDim Lighting Controller (1x)

Product Description

Allows to sell a complete solution with easy control of all light functions

Independently turn on/off and dim two sets of auxiliary lights from a single switch

LED halo switch displays your exact settings

Unlock intelligent flash features that can cancel your aux lights with your turn signal, flash your aux lights as a turn signal, or strobe your lights when you sound your horn.

On/Off & Dim

Independently control two sets of lights on/off and intensity level using the single DialDim™ Switch. The blue halo controls light set one and the green halo controls light set two. Double click to switch between the two circuits.

High/Low Sync

Your auxiliary lights will automatically switch between your selected dim setting to full intensity with the factory high beam switch. Simply connect the blue input wire to your vehicle high beam circuit to enable this feature.

Stealth Mode

A clever 0% dim setting on the switch allows your lights to be "off" during normal driving conditions but will jump to 100% intensity with your vehicle high beam switch. The lights will also react to turn signal and horn inputs in this mode but will remain off when no inputs are detected.

Cancel with Turn Signal

When enabled the main lights (blue circuit 1) will cancel in sync with your signal to prevent "washing out" your factory turn signal. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Flash as Turn Signal

When enabled your amber visibility lights (green circuit 2) will flash in sync with your factory turn signals. Simply connect the yellow and orange input wires to your vehicle turn signal circuit to enable this feature.

Strobe with Horn

When enabled your auxiliary lights on both circuits will strobe at 4Hz when you sound your horn. Simply connect the green input wire to your vehicle horn circuit to enable this feature.

Electronically Fused Circuits

Both light circuits are electronically fused and can be set right from the switch itself! The halo will illuminate red to notify you when a circuit fused is tripped.

Voltage Display Indicator

Upon vehicle startup, the switch halo will flash green to indicate a healthy battery voltage, or flash red to indicate a battery voltage that is below 11.8v.

Low Voltage Cutoff

If battery voltage drops below 10.8v the lights will not power on preventing you from being stranded. The switch halo will flash 4 red LEDs to indicate the low voltage condition.
