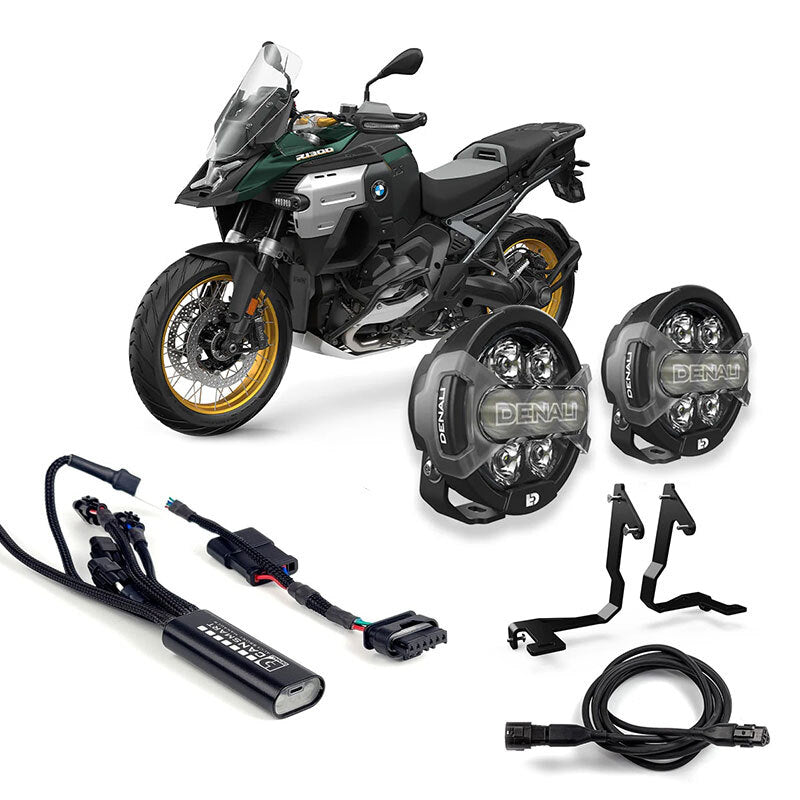

DENAL CANSMART KIT BMW D7Pro

DENALI Dialdim Kit D7PRO Universal consisting of:

DENALI D7 Pro Light- By Unit (DNL.D7P.050) (2x)

DENALI Upper Light Bracket (1x)

DENALI CANsmart™ Controller GEN II

DENALI Extension Cable 1350 mm (1x)

Product Description

DENALI D7 Pro Light- By Unit (DNL.D7P.050) (2x)

After 2 years in the making, we are thrilled to introduce the highest performing, and most feature-rich 4-inch driving light ever released! Have you ever wondered what 23,000 lumens does to a dark landscape? It will blow your mind, and we haven't even started yet.

Picture the most powerful driving light ever built, then add a flood beam, spot beam, and hybrid beam, a multi-color DRL mode, two fully dimmable circuits, and the option to change the beam shape and beam color on the fly. That's the D7 PRO, and it looks even better than it sounds.

The D7 PRO features a split dual-circuit design that allows fully independent on/off and dim of a center flood beam and outer spot beam. Use our revolutionary DialDim Switch or CANsmart Controller to effortlessly control all lighting functions from a single halo dimmer switch or the vehicle OEM handlebar controls.

Add to that, our patent pending X-Lens system which allows you to change the center flood or DRL beam color to white, amber, or selective yellow on-the-fly giving riders more flexibility and functionality than ever before.

Last but not least, the D7 PRO has a "DRL Boost Mode" which allows you to run the center optics as a dim DRL or dial it up to 100% up to create a high-power flood beam. The innovative center optics can also flash in sync with your turn signals when paired with the amber X-Lenses.

D7 PRO Pod Features

HiDrive LEDS 11,900 Lumens Per Pod - Seven 14-Watt LEDs combined with our proprietary TIR optics make this the brightest light under 4.5” ever released

Dual-Beam Technology - Independent control (and dimming) of center flood beam, outer spot beam, or all-on hybrid beam

Modular Snap-On X-Lens - Enables customizable beam shape and color on-the-fly. Interchange able center flood beam color in white, amber, or selective yellow

DRL Boost Mode - Drive the center LEDs as a low intensity DRL, or dial up the power to generate a massive high-intensity flood beam

Integrated Turn Signal Mode - Run the center flood optics as an amber DRL or flood light that will flash in sync with the vehicle turn signals

CANsmart & DialDim Compatible - Control both circuits on a single DialDim switch or unlock over 20 features & settings using the CANsmart accessory manager

D7 PRO Specs (Single Pod)

LED's: (7x) 14 Watt Cree XML3

Power Draw:  98 Watts / 8 Amps

Raw Lumens: 11,900

Spot Beam Distance: 1250 Feet (380 Meters)

Flood Beam Width: 250 Feet (75 Meters)

DataDim™ Compatible: Yes

Operating Voltage: 9-32 VDC

Pod Size: 4.4" Round x 2.9" Deep

Pod Weight: 1.8 lbs

IP68 & 69K Waterproof, Submersible, & High-pressure Spray

E Mark Approved Spot Lens (ECE R112 Driving Beam)

DENALI Extension Cable 1350 mm

Product Description

This light extension cable allows you to increase the length between DENALI driving light pods and DENALI wiring harnesses and controllers. This special light extension is included in the Universal DialDim Kit, but is also compatible with all other driving light wiring harnesses and CANsmart controllers.

DENALI Upper Light Bracket

Product Description

This vehicle specific driving light mount allows you to mount any DENALI driving light to your R1300GS Adventure. Its low profile and tucked in design make for a very clean install while placing your lights in the optimum location.

This kit includes beefy powder coated steel brackets with and M8 mounting hole and all necessary mounting hardware.

This bracket will likely interfere with OEM and 3rd party upper crash bars. If you have upper crash bars use our crash bars light mount instead LAH.00.10300.B.

What's In The Box

(x2) Light Mounts

Mounting Hardware
