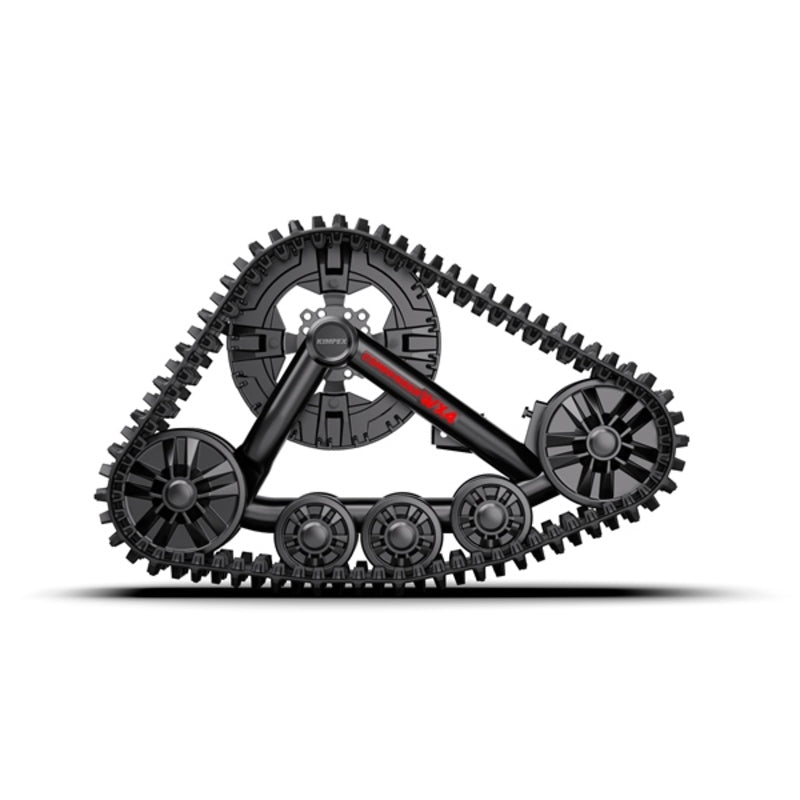

KIMPE COMMANDER WX4

To install tracks on your UTV, you need:

Don’t limit yourself anymore, equip your UTV with the Commander WX4.

Push the limits of adventure with the WX4. This track system transforms your UTV to take you farther than ever, with your friends and all your gear. And it delivers an extra dose of adrenaline along the way.

Step 1

Choose your WX4 track kit.

Step 2

Select the proper track adapter (BOM1) depending on your UTV model.

It is recommended to browse the website using the “Search by vehicle” tool.

Step 3

Select the proper front anti-rotation kit (BOM2) and rear anti-rotation kit (BOM3).

It is recommended to browse the website using the “Search by vehicle” tool.

Learn more about product design:

17-tooth sprocket, 431.8 mm

Aggressive track profile

HD tensioner: quick and easy to use

Pronounced attack angle helps clear obstacles

Wheels contact the track with rubber: prevents ice from sticking

System without slider shoe for all-season performance

Improved axle bearings for greater durability

Triangulated frame composed of robust 2.5 in / 64 mm steel tubing

Specifications:

Applications: 500 cc and above ATVs / light to medium UTVs

Width: 318 mm / 12.5 in front, 356 mm / 14 in rear

Length: 2460 mm / 97 in front, 2970 mm / 117 in rear

Weight without mount kit: 91 lb / 41 kg front, 112 lb / 51 kg rear

Frame material: steel

Lug height: 25 mm / 1 in front, 33 mm / 1.3 in rear

Drive type: internal

Flotation surface: 6% higher at the front and 10% higher at the rear

Ground clearance: increase of 145 mm / 5.5 in

Speed loss: 35%

Initial installation time: more than 3 hours

Subsequent installation time: 1 hour

Use:

Snow: deep, moderate, path and springtime

Off Snow: marshland, mud, sand, dirt road and gravel
