TEXA UNIPROBE

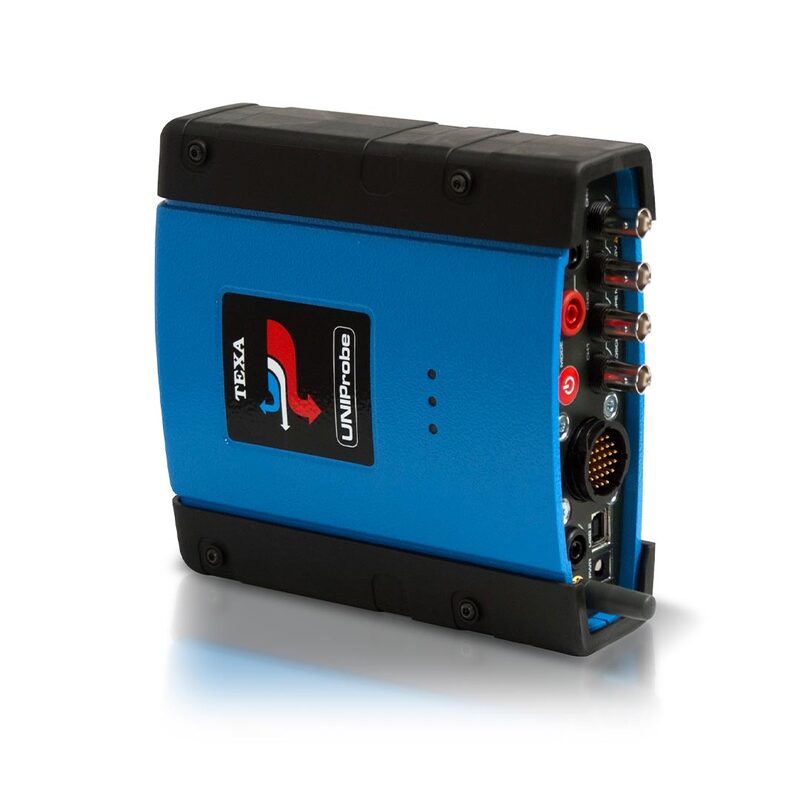

TEXA UNIProbe – 6-in-1 Measurement and Analysis System

The TEXA UNIProbe is an advanced analog and digital measurement device designed to perform all traditional electrical diagnostics on a wide range of vehicles: cars, motorcycles, scooters, ATVs, marine vehicles, light and heavy commercial vehicles, buses, and agricultural machinery.

A true 6-in-1 tool, UNIProbe integrates the essential functions of modern diagnostics into a single compact unit, delivering accuracy, fast analysis, and increased efficiency in the workshop.

Integrated functions

4-channel independent oscilloscope for precise electrical signal analysis

Battery Probe for battery testing and starting/charging system checks

TNET for measurement and troubleshooting of CAN, VAN and LIN networks

Signal generator for simulating PWM signals from sensors and actuators

Integrated multimeter for voltage, resistance and current measurements (with TEXA BICOR current clamps)

Pressure measurement module for fuel and turbo pressure testing (external pressure sensor)

Intelligent signal analysis

The exclusive SIV (Signal Information Viewing) function automatically compares measured signals with TEXA’s internal reference database, allowing immediate identification of anomalies and simplifying the diagnostic process.

Connectivity and usability

Wireless Bluetooth connection with TEXA interfaces or PC

Internal lithium battery providing up to 5 hours of operating time

Total freedom of movement around the vehicle

Compatible with TEXA MSS and IDC4 software platforms

Technical specifications

Power supply & environment

Power supply: 8 – 32 V DC

Internal battery charging voltage: 10 – 32 V DC

Internal battery: Lithium 7.4 V – 1 Ah

Operating time: up to 5 hours

Maximum current consumption: 1.2 A at 12 V

Operating temperature: 0 °C to +45 °C

Storage temperature: –20 °C to +60 °C

Relative humidity: 10 % to 80 %, non-condensing

Physical characteristics

Dimensions: 155 × 178 × 55 mm (without Bluetooth antenna)

Weight: 1.2 kg

Oscilloscope

4 independent channels

Analog bandwidth: 10 MHz (‑3 dB)

Sampling rate:

20 MSa/s (1–2 active channels)

10 MSa/s (3–4 active channels)

Maximum input voltage: ±50 V (AC or DC)

Vertical scale: 20 mV/div to 50 V/div

Horizontal scale: 500 ns/div to 5 s/div

Trigger sources: CH1, CH2, CH3, CH4 selectable

Display modes: Normal, Auto, Single Shot

Measurements: frequency, period, RMS, Vmax, Vmin

Multimeter

Galvanic isolation up to 1 kV

Voltage measurement: ±400 V DC

Input impedance: 4.7 MΩ

Resistance measurement:

0–1 kΩ

1–100 kΩ

100 kΩ–10 MΩ

Current measurement via TEXA BICOR current clamps

Specific functions

TNET: diagnosis of CAN networks (ISO11898 and ISO11519)

BPP: ignition system diagnostics (up to 50 V DC)

Electromagnetic compatibility: ETSI EN 301 489‑17 V1.2.1 / EN 6/326/1
