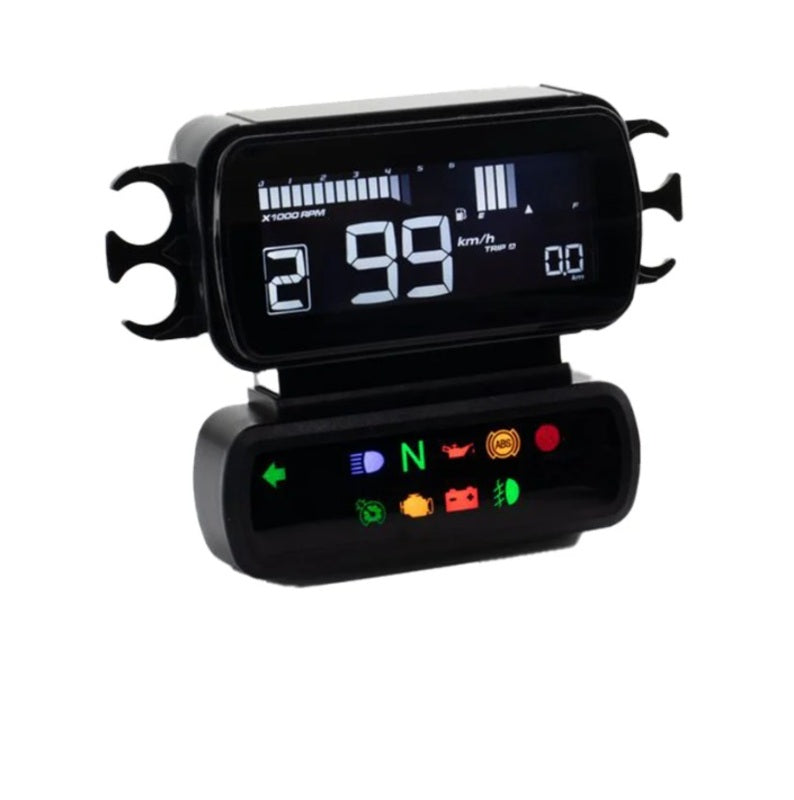

KOSO D2 MULTIFONCTION METER

Koso D2 Multifunction Meter compatible with HD® for 2018-2022 Street Bob, 2018+ Breakout, 2022+ Low Rider ST & 2022+ Softail Standard

The Koso D2 multifunction gauge lets you customize your Harley-Davidson® Street Bob, Softail, or Dyna. This high-quality, 100% plug-and-play gauge features an 8-color LCD display and combines a speedometer and tachometer with a programmable shift light. The integrated gear indicator makes it easy to keep track of your current gear at all times.

In addition, the D2 monitors important data such as engine temperature, battery voltage, tire pressure, and a complete warning light system. It can be integrated directly into the standard wiring harness and works with the original CAN bus system.

Technical specifications

Speed ​​& Mileage

Speedometer: 0–199 km/h (0–124 mph), switchable, interval <0.5 s

Internal/external odometer: up to 999,999 km (miles), automatic reset

Trip odometer A/B: up to 9,999.9 km (miles)

Tire circumference: 50–210%

Engine & Speed

Tachometer: up to 10,000 rpm

Shift light: 2,000–10,000 rpm (in 100 rpm increments), red/white flashing

Engine temperature: -39 to 300 °C (-38 to 572 °F)

Display & Lighting

Backlight: 8 colors (white, red, orange, yellow, blue, light blue, purple, green), brightness 5 levels

Warning lights: Left/right turn signals, safety light, ABS, engine oil, neutral, high beam, fuel warning, fog lights, battery discharge, engine control, cruise control, tire pressure warning

Other functions

Service mileage: OFF or 500–16,000 km (300–10,000 mi)

Tire pressure (TPMS compatible): up to 5.0 bar / 73 PSI

Fuel gauge: 10 levels

Voltage meter: 8–18 V

Time: 12h/24h format

Operating conditions

Operating voltage: DC 12 V

Operating temperature: -20 to +85 °C

Storage temperature: -30 to +90 °C

Standard: JIS D 0203 (S2)

Dimensions & Weight

Size: 88.2 × 67.0 × 35.2 mm

Weight: approx. 70 g

Table of Contents

LCD measuring device – 1×

Instrument adapter box – 1×

Cable ties (4.6 × 300 mm) – 1×
