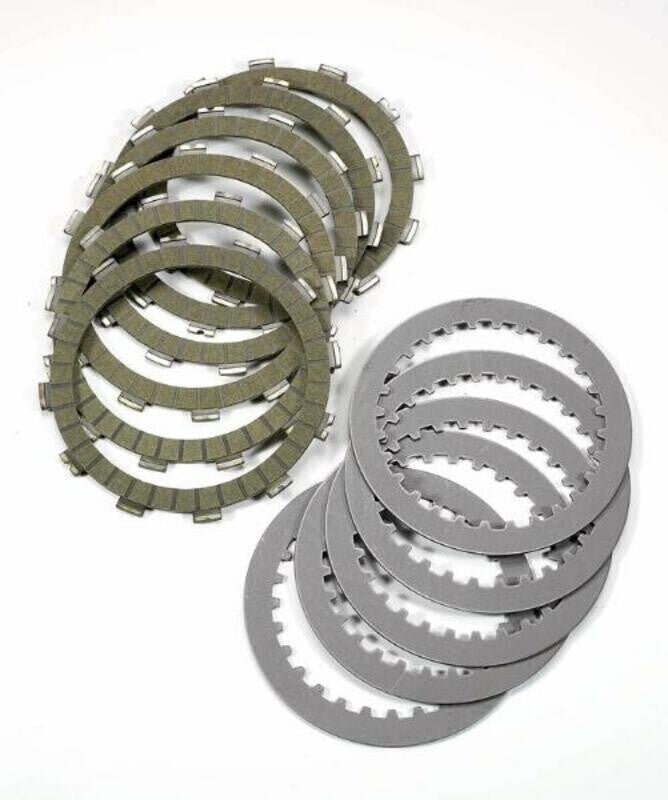

NEWFR COMPLETE CLUTCH KIT PERFORMANCE

PRO RACE SERIES Steel discs + friction discs

Pro Race clutches are Newfren's top-of-the-range clutches, combining new technologies and new materials. They have been developed in collaboration with renowned and successful teams from the Superbike, Moto 3 and MXGP World Championships. This is a special product range that uses a friction material consisting mainly of cellulose, resins, carbon and a few other components, which guarantees a very high coefficient of friction and makes it less compressible. The special design improves oil flow and allows the discs to operate more efficiently and effectively. The combination of this new material with the special design increases the stability of the linings and guarantees maximum performance stability even under the toughest operating conditions. Pro Race clutches are a high-quality competition product.

Contents:

Technical features

Friction discs

Number 7

Thickness 2.8

Number of edges 12

Outer diameter 132.5

Inner diameter 111.5

Steel discs

Number 3

Thickness 2.8

Number of edges 12

Outer diameter 132

Inner diameter 118.4

Steel discs

Number 8

Thickness 2.3

Number of teeth 36

Outer diameter 133

Inner diameter of lower teeth (mm) 110.5

Inner diameter of upper teeth (mm) 103

Conduit pipe / steel

Quantity 1

Thickness 2.3

Number of teeth 36

Outer diameter 133

Inner diameter of lower teeth (mm) 118

Inner diameter of upper teeth (mm) 111
