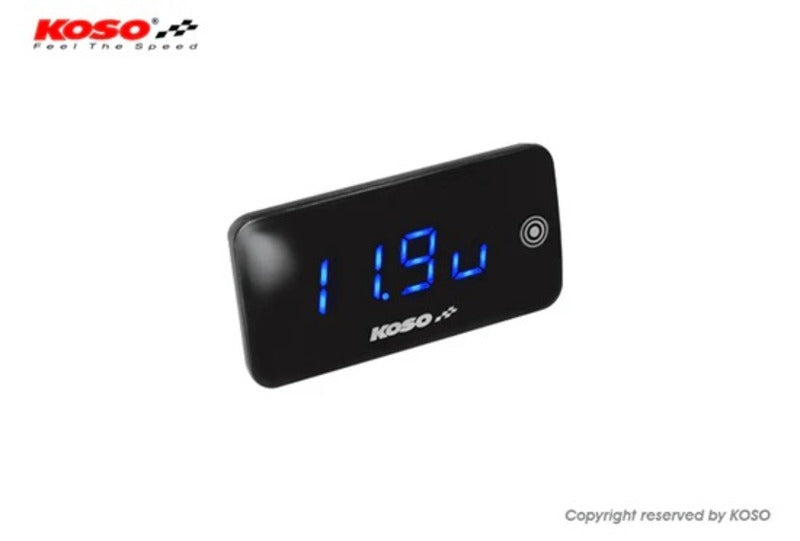

KOSO SLIM METER VOLT+THER

Slim Line New Generation Voltmeter + Thermometer Blue (with touchscreen)

The Slim Line New Generation Voltmeter + Thermometer is a modern, slim device with a touchscreen. This new generation offers enhanced functions and enables precise monitoring of temperature and voltage in the vehicle.

Main functions:

Touchscreen mode: Easily switch between values and adjust settings.

Auto-Lock mode: Automatically locks the controls after a certain time to prevent distractions while driving.

Warning system: Gives a flashing signal in auto-lock mode when the preset values are exceeded.

Slim design: Compact design for universal installation options in the cockpit.

Color variations: Available in red and green in addition to blue.

Technical details:

Temperature display:

Display range: 0 – 120°C (32 – 302°F)

Unit: 0.1°C / 0.1°F

Maximum temperature recording: 0 – 120°C (32 – 302°F)

Temperature warning: Adjustable, increments of 1°C / 1°F (preset: 100°C)

Voltmeter:

Display range: 8V – 18V

Unit: 0.1V

Low voltage warning: Adjustable from 8.0V to 18.0V (default: 11.5V)

Environmental conditions:

Operating temperature: -10°C to +60°C

Operating voltage: DC 8V – 16V

Size and weight:

Dimensions: approx. 57 × 29 × 8.7 mm

Weight: compact and lightweight

The Slim Line New Generation Voltmeter + Thermometer combines modern design, touchscreen operation, and precise measurements. With low-voltage and high-temperature warning functions and a slim profile, it's a practical and visually appealing addition to any cockpit.
