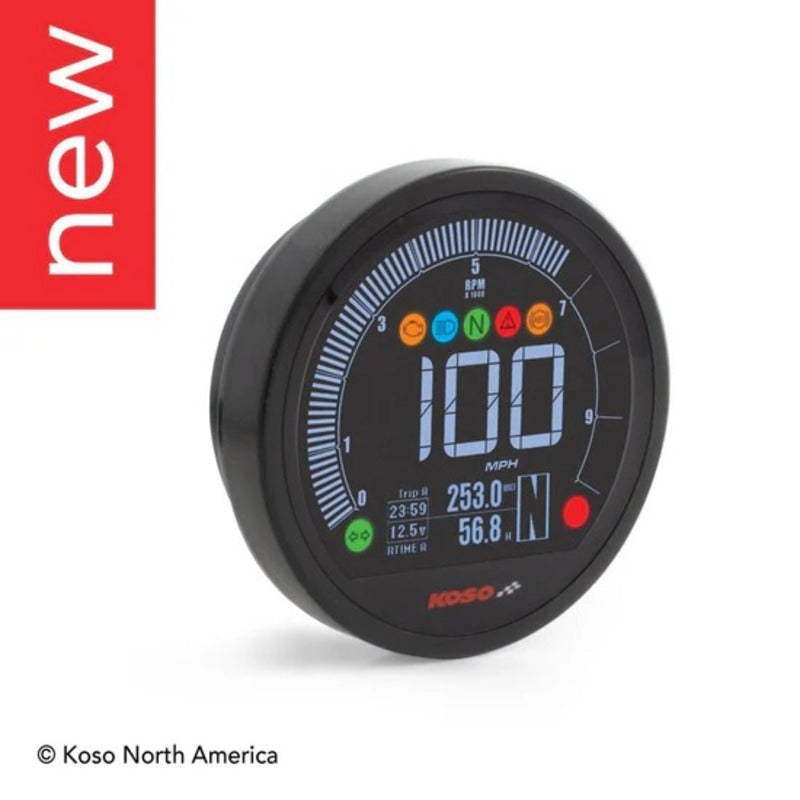

KOSO DL-04 METER
KOSO DL-04 METER
KOSO DL-04 Meter unlimited
Specifications (R = Range / U = Unit)
Speedometer
R: 0 ~ 225 MPH (0 ~ 360 km/h), switchable
U: 1 MPH or km/h
Odometer
R: 0 ~ 99,999 miles (km)
U: 1 mile (km)
Tripmeter
R: 0 ~ 9,999.9 miles (km)
U: 0.1 miles (km)
Tripmeter O (Oil change)
R: 0 ~ 9,999.9 miles (km)
U: 0.1 miles (km)
Tripmeter A (Service)
R: 0 ~ 9,999.9 miles (km)
U: 0.1 miles (km)
Oil change interval
R: 300 ~ 10,000 miles (3,000 ~ 16,000 km)
U: 100 miles (km)
Automatic reduction
Warning: Text turns red at ≤ 0 miles (km)
High speed warning
R: 18 ~ 225 MPH (30 ~ 360 km/h)
U: 1 MPH or km/h
Gear indicator
R: N, 1 ~ 6
Tachometer
R: 0 ~ 10,000 RPM / 0 ~ 15,000 RPM
Shift light
R: 5,000 ~ 15,900 RPM
U: 100 RPM
Temperature
R: 32 ~ 482 °F (0 ~ 250 °C)
U: 1°C (1°F)
Temperature warning
R: 140 ~ 482 °F (60 ~ 250 °C)
U: 1°C (1°F)
Voltmeter
R: 8.0 ~ 18.0 V
Low voltage warning
R: 8.0 V ~ 12.5 V
U: 0.1 V
Hour meter
R: 0.0 ~ 9999.9 hours
U: 0.1 hours (6 minutes)
Hour counter 1 - 2
R: 0.0 ~ 9999.9 hours
U: 0.1 hours (6 minutes)
Low oil indicator A
R: 0.0 ~ 9999.9 hours
U: 0.1 hours (6 minutes)
Recorded maximum values
Speed: 0 ~ 360 km/h (0-225 MPH)
RPM: 0 ~ 15,000 RPM
Temperature: 0 ~ 250 °C (32 ~ 482 °F)
Voltage: 8.0 ~ 18 V
Gear: N / 1 ~ 6
Clock
Format: 12 H or 24 H
Backlight brightness
R: 1 ~ 5 (darkest to brightest)
Voltage
DC 12V
Temperature range
-10 ~ +60 °C
Standard
JIS D 0203(S2)
Dimensions
Diameter: 96 mm
Weight
approx. 194.5 g
Warning lights
Turn signal (green)
Engine warning (yellow)
High beam (blue)
Neutral (green)
Warning (red)
ABS (yellow)
Shift light (red)
Contents:
LCD meter – 1×
Main wiring harness – 1×
Active RPM sensor – 1×
RPM cable (Type A) – 1×
RPM cable set (Type B) – 1×
Extension wire – 1×
Temperature sensor – 1×
External switch (double button type) – 1×
Rubber strip – 1×
Speed sensor bracket M8 / S-type – 1×
Speed sensor bracket M10 / S-type – 1×
Hex screw M5 × 5L × P0.8 – 2×
2.5 mm hex key – 1×
3 mm hex key – 1×
Meter bracket – 1×
Screw M5 × 12L – 3×
Washer M5 – 3×
Allen screw M6 × 35L – 2×
Allen screw M8 × 30L – 2×
Bushing M6 – 2×
Bushing M8 – 2×
