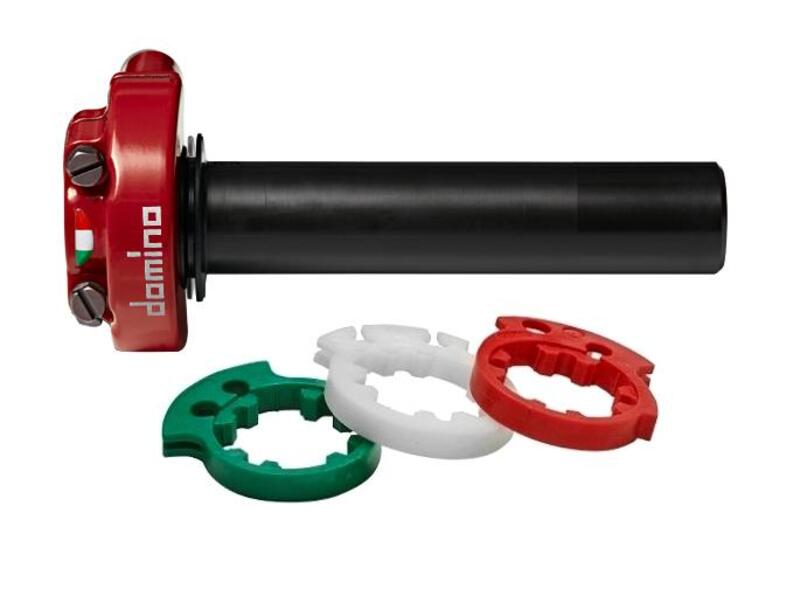

DOINO XM2 THROTTLE CONT, RED

Push-Pull Racing Series XM2

XM2 RED THROTTLE CONTROL W/O GRIPScod.5233.03-00

Attention: Packaging in a bag: more ecological and economical.

XM2 throttle control without grips.

Three pulleys (Green, White, Red) for maximum throttle adjustment.

Racing Use

Packaging : Bag with clip

Support material : Aluminium

Colour : Red

Quickness (Red ring) : 2,7°/mm

Stroke (Red ring) : 25 mm

Quickness (white ring) : 2,6°/mm

Stroke (White ring) : 36 mm

Quickness (Green ring) : 2,9°/mm

Stroke (Green ring) : 33 mm

Additional information

The picture is for illustrative purposes

♦ Recommended for racing use

♦ To be installed by a qualified workshop

Suggested use of the pulleys:

White pulley, for a greater speed of the control

Red pulley, with a more progressive opening, perfect for a sporty driving

Green pulley, with a softer opening, which is better, for example, on wet track
