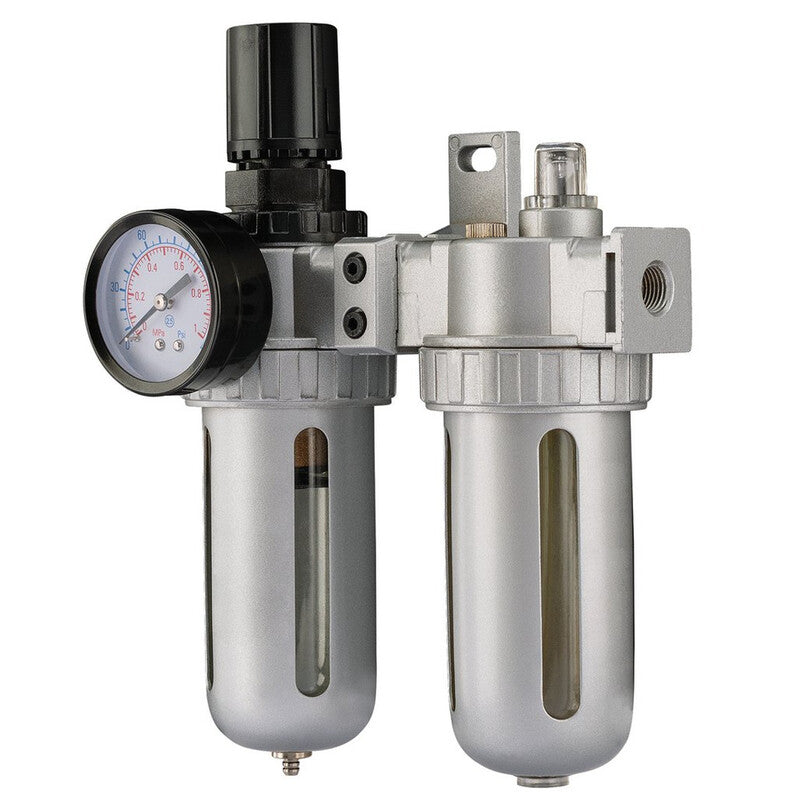

DRAPR FILTER/REGUL/LUBR 1/4 BSP

Designed to control output air pressure, eliminate moisture and contaminants from airflow and to lubricate tools during use. The main body of this unit is aluminium with polished silver finish. The gauge has steel casing and is duel-marked with psi and Mpa. Steel screw-on transparent bowl. Manual/semi-automatic drain, fitted with 40-micron filter. Complete with wall bracket.

Steel screw-on bowl

1/4″ BSP threaded

40-micron filter

145 psi

Specifications

Inlet/outlet thread: 1/4″ BSP

Working temperature range: 5–60 °C

Filtration element: 40 µm

Dimensions: 214 × 170 × 97 mm

Weight: 0.98 kg

Max inlet pressure: 145 psi
