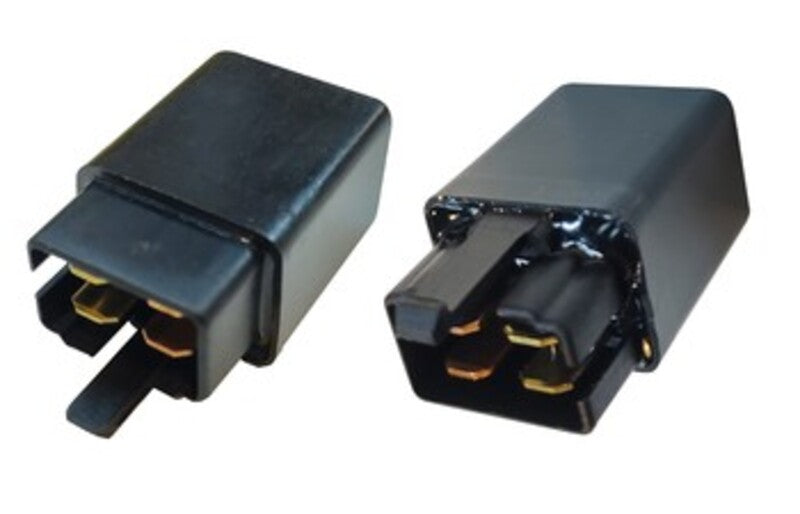

TECNI BY DZE MINI RELAY MITSUBA RC-2208

Technical information

Voltage 12 [V]

# terminals 4

Current (no current) 30 [A]

Topology SIMPLE SWITCH

Protection WITH RESISTANCE

Aprilia:

-, OEM code: AP8212469

Amico - 50, years: 1992-1998, OEM code: AP8224462

Caponord - 1000, years: 2001-2017, OEM code: AP8224462

Dorsoduro - 750, years: 2008-2016, OEM code: AP8224462

Dorsoduro - 900, years: 2017-2021, OEM code: AP8224462

Leonardo - 250 years: 2002-2004, OEM code: AP8224462

Leonardo - 300 years: 2002-2004, OEM code: AP8224462

Pegaso - 900, years: 1997-2009, OEM code: AP8224462

RS - 50, years: 2011-2022, OEM code: AP8224462

RS - 660, years: 2020-2023, OEM code: AP8224462

RS - 250, years: 1995-2003, OEM code: AP8224462

RS - 125, years: 2011-2023, OEM code: AP8224462

RST Futura - 1000, years: 2001-2003, OEM code: AP8224462

RSV 4 - 1100, years: 2019-2023, OEM code: AP8224462

RSV 2 - 1000, years: 1998-2008, OEM code: AP8224462

RSV 4 - 1000, years: 2009-2020, OEM code: AP8224462

RXV - 550, years: 2006-2011, OEM code: AP8224462

RXV - 450, years: 2006-2011, OEM code: AP8224462

Rally - 50, years: 1995-2004, OEM code: AP8224462

SL Falco - 1000, years: 2001-2003, OEM code: AP8224462

SR - 50, years: 1993-2017, OEM code: AP8224462

Scarabeo 2T - 50, years: 1993-2013, OEM code: AP8224462

Scarabeo 4T - 50, years: 2009-2018, OEM code: AP8224462

Scarabeo Light - 300, years: 2006-2012, OEM code: AP8224462

Scarabeo Light - 250, years: 2006-2012, OEM code: AP8224462

Scarabeo - 150, years: 2003-2006, OEM code: AP8224462

Scarabeo Light - 200, years: 2011-2015, OEM code: AP8224462

Scarabeo - 200, years: 2003-2006, OEM code: AP8224462

Scarabeo - 400, years: 2003-2008, OEM code: AP8224462

Scarabeo Light - 125, years: 2011-2015, OEM code: AP8224462

Scarabeo Ditech - 50, years: 2001-2004, OEM code: AP8224462

Scarabeo - 125, years: 2003-2006, OEM code: AP8224462

Scarabeo - 250, years: 2003-2006, OEM code: AP8224462

Scarabeo - 500, years: 2003-2008, OEM code: AP8224462

Sport City - 250, years: 2004-2013, OEM code: AP8224462

Sport City - 300, years: 2004-2013, OEM code: AP8224462

Sport City - 125, years: 2004-2013, OEM code: AP8224462

Tuareg - 660, years: 2021-2024, OEM code: AP8224462

Tuono - 1000, years: 2002-2015, OEM code: AP8224462

Tuono - 1100, years: 2015-2023, OEM code: AP8224462

BMW:

F - 650, years: 1993-2000, OEM code: 61137707940

F ST - 650, years: 1997-2000, OEM code: 61137707940

G GS - 650, years: 2010-2016, OEM code: 61137707940

G Xcountry - 650, Years: 2006-2009, OEM code: 61137707940

G Xmoto - 650, Years: 2006-2007, OEM code: 61137707940

G Xchallenge - 650, years: 2006-2007, OEM code: 61137707940

Derbi:

RAMBLA - 250, years: 2008-2009, OEM code: AP8224462

RAMBLA - 300, years: 2010-2011, OEM code: AP8224462

RAMBLA - 125, years: 2008-2009, OEM code: AP8224462

Honda:

CB - 500, year: 1994, OEM code: 38501-GN2-014

CB Seven Fifty - 750, years: 1994-1995, OEM code: 38501-GN2-014

CB Super Four - 1300, years: 2003-2009, OEM code: 38501-GN2-014

CB SF - 1100, years: 2000-2001, OEM code: 38501-GN2-014

CB Police - 250, Year: 1996, OEM code: 38501-GAM-007

CB Hornet - 600, Years: 2003-2006, OEM code: 38501-GN2-014

CB Hornet - 900, years: 2002-2007, OEM code: 38501-GN2-014

CB F - 1000, years: 1993-1994, OEM code: 38501-GAM-007

CBF - 600, years: 2004-2006, OEM code: 38501-GN2-014

CBF F - 1000, years: 1989-1996, OEM code: 38501-GN2-014

CBR Blackbird - 1100, Years: 1997-2006, OEM code: 38501-GN2-014

CBR F / F3 - 600, Years: 1991-1998, OEM code: 38501-GN2-014

CBR RR Fireblade - 900, years: 1994-2003, OEM code: 38501-GN2-014

CBR F / F4 - 600, years: 2001-2006, OEM code: 38501-GAM-007

CBR F - 1000, years: 1993-1997, OEM code: 38501-GAM-007

CRF X - 250, years: 2004-2007, OEM code: 38501-GAM-007

GL - 1500, years: 1997-2003, OEM code: 38501-GN2-014

GL Goldwing - 1200, years: 1985-1986, OEM code: 38501-GAM-007

NC - 700, Years: 2015-2018, OEM code: 38501-GN2-014

NES - 150, Years: 2000-2005, OEM code: 38501-GN2-014

NH Lead - 50, Years: 1989-1990, OEM code: 38501-GN2-014

NH Lead - 80, Years: 1985-1993, OEM code: 38501-GN2-014

NR - 750, year: 1992, OEM code: 38501-GN2-014

NSS - 250, years: 2001-2005, OEM code: 38501-GAM-007

NTV Revere - 600, year: 1991, OEM code: 38501-GN2-014

NTV Revere - 650, years: 1991-1996, OEM code: 38501-GN2-014

NV Shadow - 600, years: 1995-1997, OEM code: 38501-GN2-014

NV Shadow - 400, years: 1995-1997, OEM code: 38501-GN2-014

NX Dominator - 650, years: 1992-1994, OEM code: 38501-GAM-007

RVF - 750, years: 1994-1995, OEM code: 38501-GN2-014

RVT R - 1000, years: 2000-2006, OEM code: 38501-GN2-014

SA - 50, years: 1988-1993, OEM code: 38501-GN2-003

SH Scoopy - 50, Years: 1993-2001, OEM code: 38501-GAM-007

ST - 1100, Years: 1990-2003, OEM code: 38501-GN2-014

ST - 1300, years: 2005-2017, OEM code: 38501-GAM-007

VF Magna - 750, years: 1993-1995, OEM code: 38501-GAM-007

VFR F - 1200, Years: 2010-2014, OEM code: 38501-GN2-014

VFR - 800, Years: 1998-2009, OEM code: 38501-GN2-014

VFR Interceptor - 750, Years: 1988-1997, OEM code: 38501-GN2-014

VFR Interceptor - 750, Year: 1988, OEM code: 38501-GN2-004

VFR R - 400, years: 1990-1991, OEM code: 38501-GN2-014

VT Shadow - 600, years: 1992-1995, OEM code: 38501-GN2-014

VT Shadow - 1100, years: 1994-1995, OEM code: 38501-GAM-007

VTR - 1000, years: 2001-2005, OEM code: 38501-GN2-014

VTX C - 1800, Years: 2002-2008, OEM code: 38501-GN2-014

Vision - 50, Year: 1990, OEM code: 38501-GN2-003

XL Varadero - 125, Years: 2007-2010, OEM code: 38501-GN2-014

XL Varadero - 1000, Years: 1999-2009, OEM code: 38501-GN2-014

XLV Transalp - 600, years: 1991-1994, OEM code: 38501-GN2-014

XRV Africa Twin - 750, years: 1990-2000, OEM code: 38501-GN2-014

XRV Africa Twin - 650, Year: 1989, OEM code: 38501-GN2-014

Kymco:

Cobra 2T - 50, OEM code: 38501-GBN2-004

Spacer 2T - 50, OEM code: 38501-GBN2-004

Super 9 LC 2T EURO I - 50, OEM code: 38501-GBN2-004

ZX 2T EURO I Super Fever - 50, OEM code: 38501-GBN2-004

Moto Guzzi:

Audace - 1380, Years: 2015-2021, OEM code: AP8224462

Breva - 1050, Years: 2003-2012, OEM code: AP8224462

California - 1380, years: 2012-2021, OEM code: AP8224462

Griso - 1150, years: 2005-2017, OEM code: AP8224462

Nevada - 750, years: 2004-2013, OEM code: AP8224462

Norge - 1050, years: 2006-2017, OEM code: AP8224462

Sport - 1200, years: 2006-2013, OEM code: AP8224462

Stelvio - 1050, years: 2009-2017, OEM code: AP8224462

V7 - 850, years: 2008-2024, OEM code: AP8224462 OEM: AP8224462

V85 - 850, Years: 2019-2024, Cod. OEM: AP8224462

V9 - 850, Years: 2016-2023, Cod. OEM: AP8224462

Replacement:

Mitsuba - RC-2208
