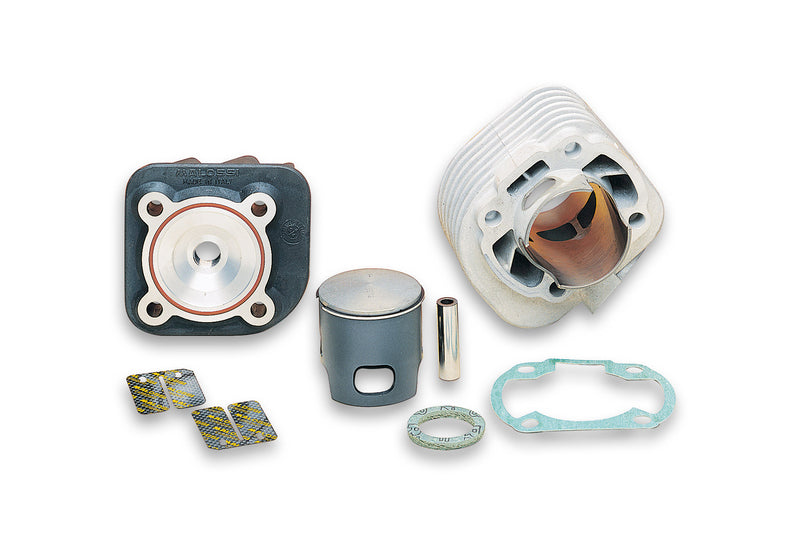

MALOS CYLINDER FOR RACE

Description

CYLINDER KIT MHR

TECHNICAL FEATURES

CYLINDER

Material: special aluminium alloy with high percentage of silicon and titanium that guarantees exceptional strain strength even at high temperatures.

Heat treatment: special quenching and stabilizing treatment that gives the material increased toughness and strength, guaranteeing that mechanical and size specifications will remain unaltered for temperatures of up to 250 °C.

Chip-forming machining: carried out on NC machining centres with extremely-limited size and shape tolerance (roundness, perpendicularity).

Inner surface coating: effected using silicon carbide on a nickel matrix with heat treatment that guarantees extreme hardness (around 600 HVO, 1/5) and excellent resistance to wear.

Internal machining of cylinder: using special machines that allow a degree of finish on the cylinder barrel walls whose roughness corresponds with the angles set at the design stage (grinding process using special stone).

Port and exhaust diagrams: designed and manufactured especially for racing. The definition of the port and exhaust diagrams has requested considerable effort on the part of our engineers both on engine test stands and the circuits on which the trophy is held.

PISTON

Material: special aluminium alloy with a very high percentage of silicon and titanium that guarantees both excellent heat resistance and strain strength upon temperature variation.

External coating: graphite coating that guarantees a very low friction coefficient

Structure: reinforced in order to offer resistance to the stress suffered by cylinder units used for top-level competition, but at the same time light enough to reduce inertial force.

Ring: 1 mm nodular-cast-iron single ring with rectangular cross section and hard-chromium coating on outer surface.

PISTON RINGS

Rings in very strong modular cast iron with ground, wear-resistant, hard chrome metal-spray coating on the contact surface.

HEAD

Material: special alluminium alloy with a very high heat exchange coefficient.

Geometry of heat exchange surfaces recalculated and increased.

Combustion chamber completely-designed to obtain a high compression ratio with a very high turbolece.

Machining: numerically controlled machines.

Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use

Compatible brands and models

AEON MOTOR COBRA 50 2T (AT70) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

APRILIA SR 50 2T 1994-> To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

APRILIA RALLY 50 2T (MINARELLI) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

APRILIA SCARABEO 50 2T (MINARELLI) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

APRILIA SONIC 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

APRILIA SR WWW 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

BENELLI 491 GT 50 2T (MINARELLI) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

BENELLI K2 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

BENELLI NAKED 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

BENELLI PEPE LX 50 2T euro 2 (QJ1E40QMB-4) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

BENELLI QuattronoveX 50 2T euro 2 To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

BETA ARK 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

BETA QUADRA 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

BSV AX 50 To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

BSV GZ 50 To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

CPI ARAGON GP 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

CPI HUSSAR 50 2T 2003-> To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

CPI OLIVER 50 2T 2003-> To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

CPI POPCORN 50 2T 2003-> To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

EXPLORER CRACKER 50 2T 2003-> (GE 1E 400 MB) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

GARELLI TIESSE 50R 50 2T euro 2 (1E40QMB) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

HUPPER MONTECARLO 30 50 2T (1E40QMB) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

KEEWAY F-ACT 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

KEEWAY GOCCIA 50 2T (KW1E40QMB-4 ) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

KEEWAY HURRICANE 50 2T euro 2 (KW1E40QMB) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

KEEWAY MATRIX 50 2T (KW1E40QMB-4) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

KEEWAY PIXEL 50 2T euro 2 (KW1E40QMB ) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

KEEWAY RY8 50 2T (KW1E40QMB-4 ) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

MALAGUTI F10 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

MALAGUTI F10 WAP 50 2T euro 2 (QJ*CMA03C*) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

MALAGUTI F12-PHANTOM 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

MALAGUTI F12 R ARIA 50 2T euro 2 (QJ*CMA02C*) To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

MALAGUTI YESTERDAY 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

MBK EVOLIS 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

MBK FLIPPER 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

MBK FORTE 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

MBK HOT CHAMP 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

MBK MACH G 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

MBK OVETTO 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

MBK SORRISO 50 2T 1996-> To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

MOTRON SYNCRO 50 To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

MOTRON THUNDER'S 50 To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

YAMAHA AXIS 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

YAMAHA BREEZE 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

YAMAHA JOG ER 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

YAMAHA JOG 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

YAMAHA JOG R 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

YAMAHA JOG Z 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

YAMAHA NEO'S 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

YAMAHA VINO 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

YAMAHA WHY 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009

YAMAHA ZEST 50 2T To be assembled EXCLUSIVELY with Malossi CRANKSHAFT 53 8009
