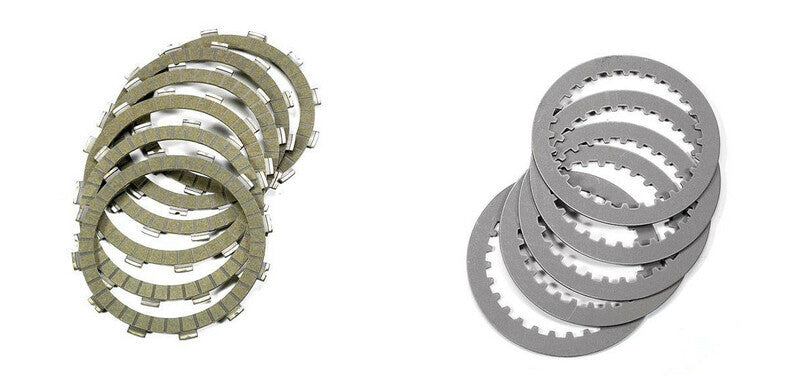

NEWFR COMPLETE CLUTCH KIT PRO

PRO RACE LINE

The Pro Race clutches are the top of the range. They are the result of research in new technologies combined with new materials developed in collaboration with important teams in Superbike, Moto3 and MXGP. The friction material is mainly composed of cellulose, resins, carbon and other elements that guarantee an extremely high coefficient of friction and are less compressible. The particular design of “separate notches” improves the flow of oil, allowing the plates to operate more efficiently. The combination of this design with the new friction material increases the fatigue resistance and guarantees maximum performance stability, even in extreme use, thus making the Pro Race clutch a very high quality racing product.Friction

Qty 5

Thickness 2,4

Nr. of edges 24

External Diameter 109,9

Internal Diameter 90,8

Steel

Qty 4

Thickness 1,4

Nr. of teeth 30

External Diameter 110

Int diam. bottom teeth (mm) 90

Int diam. top teeth (mm) 83,6
