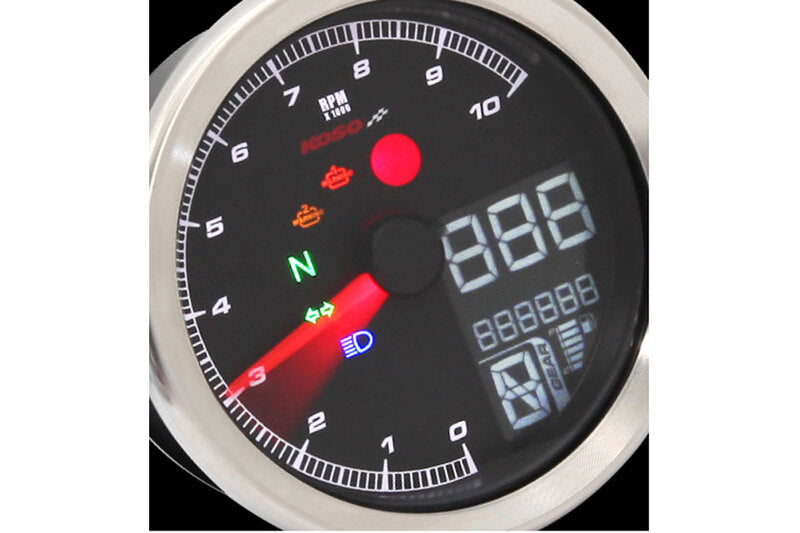

KOSO DIGI MULTI COCKPIT TNT 04

Koso TNT-04 Multifunctional Speedometer (BA051410)

Description

The Koso TNT-04 is a high-quality digital multifunctional speedometer, designed for motorcycles with a 12V electrical system. Its compact and sleek design makes it an ideal choice for sport, custom, or racing bikes looking for a modern and complete instrument panel.

Technical Features

Speedometer: Range from 0 to 360 km/h (0 to 225 mph), with an adjustable overspeed warning between 30 and 360 km/h.

Odometer: Total (0–999,999 km) and two partials (0–9,999.9 km).

Tachometer: Range from 0 to 10,000 rpm, with a shift light adjustable between 1,000 and 8,000 rpm.

Gear Indicator: N, 1–6.

Fuel Indicator: 6 levels with an adjustable reserve option between 10% and 50%.

Engine Temperature: Range from 0 to 250°C, with an overheating warning.

Voltmeter: Range from 8 to 18 V, with an adjustable low voltage warning.

Clock: 12/24 hour format.

Backlighting: 8 selectable colors (purple, red, yellow, green, blue, cyan, white) with 5 intensity levels.

Certification: Approved by ABE/KBA 91397.

Physical Specifications

Dial Diameter: 94.7 mm

Depth: 55.8 mm

Height: 55.8 mm

Weight: Approximately 165 g

Voltage: 12V DC

Package Contents

Koso TNT-04 BA051410 Speedometer

Speed sensor with magnet

Temperature sensor

Mounting bracket

Required connectors and cables

Installation instructions

Recommended Applications

Compatible with a wide variety of sport, naked, custom, and racing motorcycles that require a digital and road-approved instrument panel.

Note: Professional installation is recommended to ensure optimal performance and avoid damage to the vehicle components.
