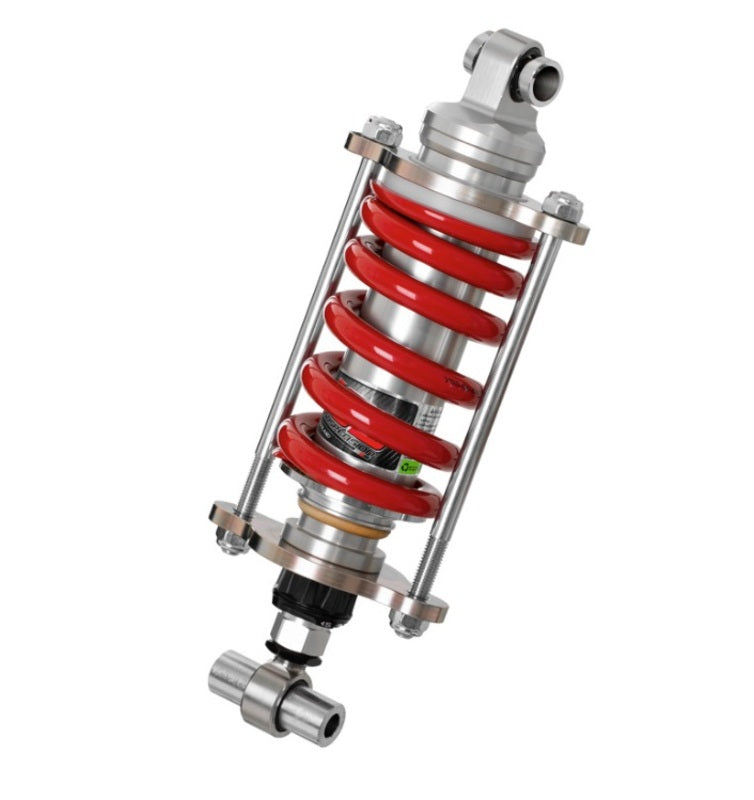

YSS GAS MONO REAR SHOCK TMAX 08-11

The shock absorber features a precisely machined aluminum body and is adjustable in both spring preload and rebound damping (30 clicks).

The spring preload is locked in place using a set screw, and the damper length can be adjusted by up to +10 mm.

The necessary adjustment tool is included in the package.

Technical Specifications:

Type: Gas pressure

Top Mounting: Eye

Inner Diameter (Top): 16 mm

Length: 310 mm

Bottom Mounting: Eye

Inner Diameter (Bottom): 12 mm

Adjustment Options:

Stepless spring preload

Length adjustment (+10 mm)

Rebound damping

Additional Information:

Spring Color: Red

Spring Rate: 200

Spring Length: 150 mm

Spring Diameter: 56 mm

Reservoir: No

Manufacturer: YSS

Piston Diameter: 45 mm

Piston Rod Diameter: 16 mm
