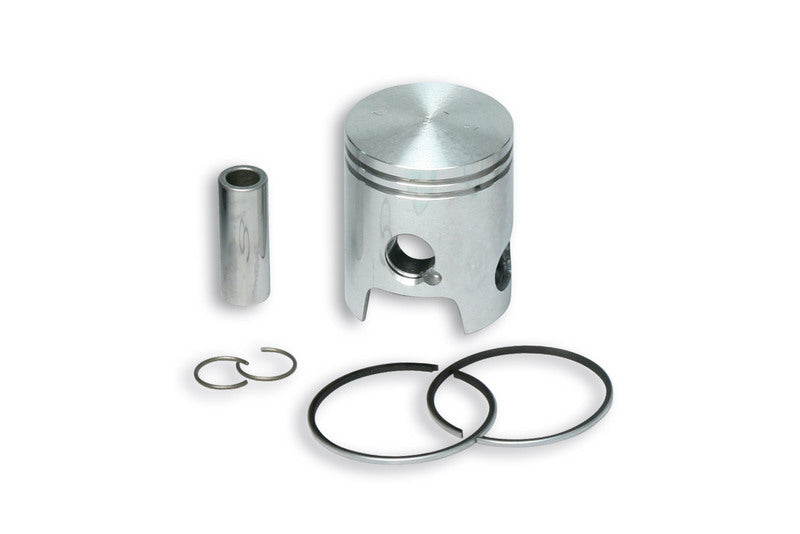

MALOS PISTON, 40,000MM

Description

All Malossi cast iron and aluminium cylinders are divided into different classes according to tolerance.

Classes from ‘0’ (smallest piston) to ‘D’ (largest piston) are available, each with 0.01 mm spacing.

Please specify the desired class when ordering:

Example

34 3448           corresponds to class 0

34 3448. A0     corresponds to class A

34 3448.B0     corresponds to class B

34 3448.C0     corresponds to class C

34 3448. D0     corresponds to class D

The following oversizes are only available for grey cast iron cylinders:

34 3448.40      enlarged by 0. 4 mm larger

34 3448.80      0.8 mm larger

Old pistons are also available in oversizes + 0.2 mm and +0. 6 mm (e.g. 34 3448.20 - 34 4375.60).

All Malossi cylinders are categorised by size and bear a size mark, week number and year.

All Malossi pistons bear the size marking (letter or number).

An arrow on the piston crown shows how the piston should be correctly aligned when used in cylinders. The arrow should point in the direction of the outlet.

Products intended exclusively for use in competitions at the designated locations in accordance with the regulations of the relevant sports authorities. We accept no liability for improper use.

Compatible makes and models

AEON MOTOR COBRA 50 2T (AT70) with CYL.KIT 31 8562 to modify the piston bolt from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCEGRÖßE of the installed piston PRÜFEN)

APRILIA SR 50 2T 1994-> with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCEGRÖßE of the installed piston PRÜFEN)

APRILIA AMICO 50 2T with CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCEGRÖßE of the installed piston PRÜFEN)

APRILILIA AREA 51 50 2T LC with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE USE CORRECT TOLERANCE RATIO of the installed piston PRÜFEN)

APRILILIA GULLIVER 50 2T LC with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCEGRÖßE of the installed piston PRÜFEN)

APRILIA GULLIVER 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCEGRÖßE of the installed piston PRÜFEN)

APRILIA RALLY 50 2T (MINARELLI) with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCE RATIO of the installed piston PRÜFEN)

APRILIA SR NETSCAPER 50 2T LC (MINARELLI) with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCEGRÖßE of the installed piston PRÜFEN)

APRILIA RALLY 50 2T LC (MINARELLI) with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCEGRÖßE of the installed piston PRÜFEN)

APRILIA SCARABEO 50 2T (MINARELLI) with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCE RATIO of the installed piston PRÜFEN)

APRILIA SR RACING 50 2T LC (MINARELLI) with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCE RATIO of the installed piston PRÜFEN)

APRILILIA SONIC 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCE RATIO of the installed piston PRÜFEN)

APRILIA SONIC 50 2T LC with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCEGRÖßE of the installed piston PRÜFEN)

APRILIA SR 50 2T <-1993 with CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCEGRÖßE of the installed piston PRÜFEN)

APRILIA SR REPLICA 50 2T LC <-1999 with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCEGRÖßE of the installed piston PRÜFEN)

APRILIAAPRILIA SR STEALTH 50 2T LC (MINARELLI) at CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCEGRÖßE of the installed piston PRÜFEN)

APRILIA SR WWW 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCEGRÖßE of the installed piston PRÜFEN)

ATALA CAROSELLO 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCE RATIO of the installed piston PRÜFEN)

BENELLI 491 SPORT 50 2T LC (MINARELLI) with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCE RATIO of the installed piston PRÖFEN)

BETA ARK 50 2T with CYCL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE CHECK correct TOLERANCE RATIO of the installed piston PRÜFEN)

BETA ARK 50 2T LC with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCE RATIO of the installed piston PRÖFEN)

BETA CHRONO 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCE RATIO of the installed piston PRÜFEN)

BETA EIKON 50 2T LC with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE CHECK correct TOLERANCE DIMENSIONS of the installed piston)

BENELLI 491 GT 50 2T (MINARELLI) with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCE RATIO of the installed piston PRÜFEN)BENELLI K2 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCE RATIO of the installed piston PRÜFEN)BENELLI K2 50 2T LC with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCEGRÖßE of the installed piston PRÜFEN)BENELLI NAKED 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCEGRÖßE of the built-in piston PRÜFEN)BENELLI PEPE 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCE RATIO of the built-in piston PRÜFEN)BETA QUADRA 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCE RATIO of the built-in piston PRÖFEN)BETA TEMPO 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCEGRÖßE of the installed piston PRÖFEN)BSV AX 50 with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE CHECK correct TOLERANCEGRÖßE of the installed piston PRÖFEN)BSV GZ 50 on CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE CHECK correct TOLERANCE DIMENSIONS of the installed piston)

FANTIC BIG WHEEL 50 2T with CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE USE CORRECT TOLERANCE RATIO of the installed piston PRÜFEN)ITALJET DRAGSTER 50 2T LC with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCE RATIO of the installed piston PRÜFEN)ITALJET PISTA 2 50 2T with CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCEGRÖßE of the installed piston PRÜFEN)ITALJET SCOOP 50 2T with CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE PRÜFEN correct TOLERANCEGRÖE of the installed piston)

ITALJET YANKEE 50 2T with CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE USE CORRECT TOLERANCE RATIO of the installed piston PRÜFEN)MALAGUTI F10 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE USE CORRECT TOLERANCEGRÖßE of the installed piston PRÖFEN)MALAGUTI F12-PHANTOM 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCE RATIO of the installed piston PRÜFEN)MALAGUTI CENTRO 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE correct TOLERANCEGRÖßE of the installed piston PRÜFEN)

MALAGUTI CIAK 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCE RATIO of the installed piston PRÜFEN)MALAGUTI F15 FIREFOX 50 2T LC with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCE RATIO of the installed piston PRÜFEN)MALAGUTI F12 DIGIT KAT-PHANTOM 50 2T LC with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE USE THE CORRECT TOLERANCE RATIO of the installed piston PRÜFEN)MALAGUTI F12 DIGIT KAT-PHANTOM 50 2T LC euro 2 with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCE RATIO of the installed piston PRÜFEN)MALAGUTI F12-PHANTOM 50 2T LC with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCE RATIO of the installed piston PRÜFEN)MALAGUTI F12 R LC 50 2T LC euro 2 with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCE RATIO of the installed piston PRÜFEN)MALAGUTI YESTERDAY 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE CHECK correct TOLERANCE DIMENSIONS of the installed piston)

MBK BOOSTER 50 2T euro 0-1 with CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE USE CORRECT TOLERANCE RATIO of the installed piston PRÜFEN)MBK BOOSTER 50 2T euro 2 (A137E) with CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCEGRÖßE of the installed piston PRÜFEN)MBK BOOSTER SPIRIT 50 2T euro 0-1 on CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCE RATIO of the installed piston PRÖFEN)MBK EVOLIS 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCEGRÖßE of the installed piston PRÖFEN)MBK FIZZ 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCEGRÖßE of the installed piston PRÖFEN)MBK FLIPPER 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCEGRÖßE of the installed piston PRÖFEN)MBK FORTE 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE CHECK correct TOLERANCEGRÖßE of the installed piston PRÜFEN)MBK HOT CHAMP 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCE RATIO of the installed piston PRÖFEN)MBK MACH G 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCE RATIO of the installed piston PRÖFEN)MBK MACH G 50 2T LC with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE USE CORRECT TOLERANCE RATIO of the installed piston PRÜFEN)MBK BOOSTER NAKED 50 2T euro 2 (A137E) with CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCEGRÖßE of the installed piston PRÜFEN)MBK NITRO 50 2T LC with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCE RATIO of the installed piston PRÜFEN)MBK BOOSTER NG 50 2T euro 0-1 with CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCEGRÖßE of the installed piston PRÜFEN)MBK BOOSTER NG 50 2T euro 2 (A137E) with CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCEGRÖßE of the installed piston PRÜFEN)MBK OVETTO 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE USE CORRECT TOLERANCE RATIO of the installed piston PRÜFEN)MBK BOOSTER ROCKET 50 2T euro 0-1 with CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE USE CORRECT TOLERANCE RATIO of the installed piston PRÜFEN)MBK BOOSTER ROCKET 50 2T euro 2 (A137E) with CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCEGRÖßE of the installed piston PRÜFEN)MBK SORRISO 50 2T 1996-> with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCEGRÖßE of the installed piston PRÜFEN)

MBK STUNT 50 2T euro 0-1 with CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCEGRÖßE of the installed piston PRÜFEN)MBK STUNT 50 2T euro 2 with CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE CHECK correct TOLERANCE DIMENSIONS of the installed piston)

MOTRON SYNCRO 50 with ZYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCE RATIO of the installed piston PRÜFEN)MOTRON THUNDER'S 50 with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCE RATIO of the installed piston PRÜFEN)YAMAHA AEROX 50 2T LC euro 0-1 with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCE RATIO of the installed piston PRÜFEN)YAMAHA AEROX 50 2T LC euro 2 with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCE RATIO of the installed piston PRÜFEN)YAMAHA AXIS 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE USE CORRECT TOLERANCE RATIO of the installed piston PRÜFEN)YAMAHA BREEZE 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCEGRÖßE of the installed piston PRÜFEN)YAMAHA BW'S 50 2T euro 0-1 with CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCEGRÖßE of the installed piston PRÜFEN)YAMAHA BW'S 50 2T euro 2 (A137E) on CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCEGRÖßE of the installed piston PRÜFEN)YAMAHA BW'S Original/Naked 50 2T euro 2 2010-> (A137E) at CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCEGRÖßE of the installed piston PRÜFEN)YAMAHA BW'S NG 50 2T euro 0-1 on CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCEGRÖßE of the installed piston PRÜFEN)YAMAHA BW'S NG 50 2T euro 2 (A137E) on CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCEGRÖßE of the installed piston PRÜFEN)YAMAHA JOG ER 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE USE CORRECT TOLERANCE RATIO of the installed piston PRÜFEN)YAMAHA JOG 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE USE CORRECT TOLERANCE RATIO of the installed piston PRÜFEN)YAMAHA JOG R 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE USE CORRECT TOLERANCEGRÖßE of the installed piston PRÜFEN)YAMAHA JOGRR 50 2T LC euro 2 with CYL.KIT 31 8556 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCEGRÖßE of the installed piston PRÜFEN)YAMAHA JOG Z 50 2T with ZYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE USE CORRECT TOLERANCE RATIO of the installed piston PRÜFEN)YAMAHA NEO'S 50 2T with ZYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use the correct TOLERANCE RATIO of the installed piston PRÜFEN)YAMAHA SLIDER 50 2T with CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE USE CORRECT TOLERANCE RATIO of the installed piston PRÜFEN)YAMAHA SPY 50 2T with CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE USE CORRECT TOLERANCE RATIO of the installed piston PRÜFEN)YAMAHA VINO 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE use correct TOLERANCEGRÖßE of the installed piston PRÜFEN)YAMAHA WHY 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE USE CORRECT TOLERANCE RATIO of the installed piston PRÜFEN)YAMAHA ZEST 50 2T with CYL.KIT 31 8562 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE USE CORRECT TOLERANCE RATIO of the installed piston PRÜFEN)YAMAHA ZUMA 50 2T with CYL.KIT 31 6901 to modify the piston pin from Ø 10 to Ø 12. (* PLEASE CHECK correct TOLERANCE DIMENSIONS of the installed piston)
