MALOS ECU FORCE MASTER 2

Description

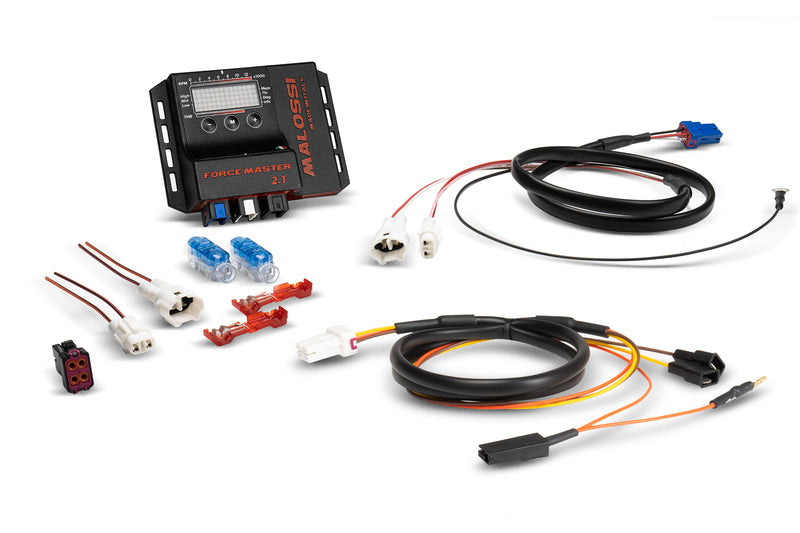

The Force Master 2.1 control unit has a completely new look and is much easier to configure. Making products more ergonomic and user-friendly has always been one of Malossi's goals: Force Master 2.1 is a contemporary, appropriate and high-performance product. With an interface for the K- and CAN communication lines, a new user interface and the addition of a capacitive ignition input, the Force Master 2.1 is the ideal addition for managing the vehicle's performance: without functional limitations, it makes it possible to push the engine beyond the limit of the original rev limiter.

Technical details

Carburettor power

adjustment

± 14% at min/medium/max

rev limiter: + 600 RPM

Temperature range = -30°C +80°C

Minimum operating voltage = +7V

Maximum operating voltage = +16V

Average power consumption <-200mA

Protection class = IP65

2 different maps:

Curve 0: Malossi exhaust system with DB-killer, original cylinder, original head, original camshaft and original filter

Curve 1: Malossi exhaust system without DB-killer, original cylinder, original head, original camshaft and original filter

Full carburettor control is achieved by combining theO2 controller with the Force Master control unit. The synergy of these two devices is limitless, managing, controlling and optimising every processing step suggested by Malossi.

Products intended solely for competition in the locations specified and in accordance with the provisions of the relevant sports authorities. We do not accept liability for improper use.
