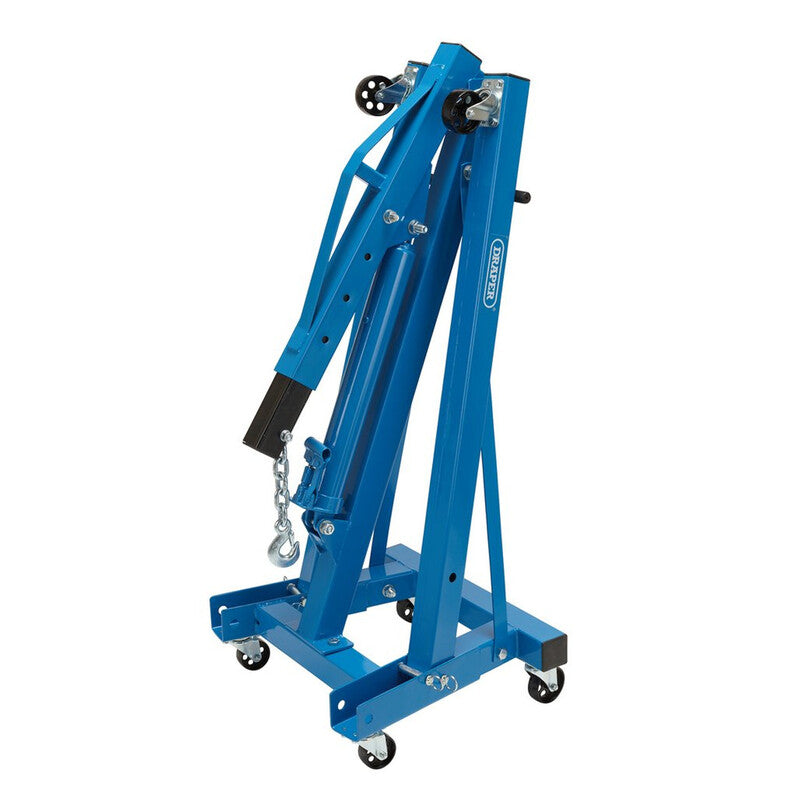

DRAPR FOLDING CRANE 1T

This robust engine crane has a maximum capacity of 1 Tonne. The single piston hydraulic pump ensures rapid lifting of an engine out of its bay with little effort. There are four pre-set jib positions, with a maximum capacity of 250kg when the jib is fully extended. The outrigger legs can be folded to optimise storage workshop space or for easy transportation. There are six robust castor wheels to allow safe and easy mobility. For safety they are twin overload valves to prevent exceeding capacity. This engine crane is compatible with a wide range of load slings and levellers.

Three pre-set jib positions for lifting

Single piston hydraulic pump for rapid lifting

Folding design optimises storage space

Six robust castor wheels for easy mobility

Fitted with twin safety overload valves

Compatible with a wide range of load slings and levellers

Manufactured to EN1494 Specification

Informations:

Capacity: 1 Tonne

Capacity position 1: 1,000 kg

Maximum jib length position 1: 910 mm

Maximum jib height position 1: 2,010 mm

Capacity Position 2: 750 kg

Maximum jib length position 2: 1,000 mm

Maximum jib height Position 2: 1,930 mm

Capacity Position 3: 500 kg

Maximum jib length position 3: 1,090 mm

Maximum jib height position 3: 1,850 mm

Capacity position 4: 250 kg

Maximum jib length position 4: 1,190 mm

Maximum jib height position 4: 1,780 mm

Frame height: 1,420 mm

Frame length: 750 mm

Frame width: 70 mm

Folded dimensions: H 1,520 x L 600 x W 1,420 mm

Weight: 66.90 kg
