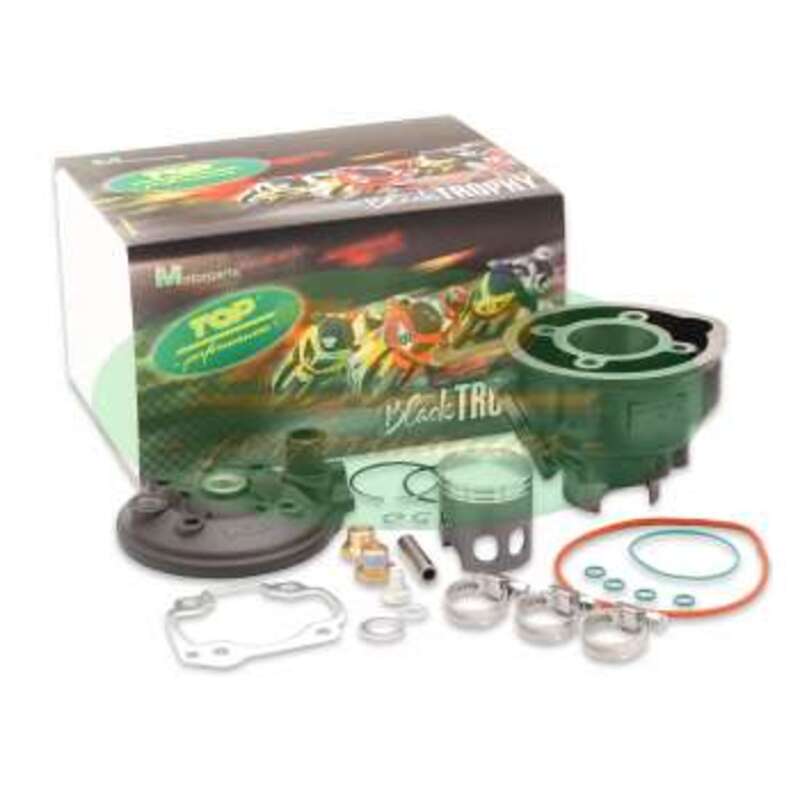

TOPPE KIT BLACK TROPHY D.47 MINARELLI LC

Contents:

1 cylinder Ø 47 mm made of "MINACROM" cast iron (with chromium added to the alloy)

1 piston Ø 47 mm with high silicon content and "molybdenum disulphide" surface treatment

1 Chrome-plated upper piston ring Ø 47

1 Lower piston ring Ø 47

1 piston pin Ø 10 x 38

2 circlips for piston pin

1 Head

1 Moulded O-ring Ø 104.37 x 3.53

1 combustion chamber O-ring Ø 51.50 x 1.78

4 O-rings Ø 7.66 x 1.78

1 cylinder base gasket

1 aluminium gasket Ø 8

1 aluminium gasket Ø 14

1 hexagon head screw M8 x 10

1 hexagon head screw M14 x 1.25

1 H2 O sensor reduction

3 cable ties Ø 16-25

BORE = 47 mm

STROKE = 39.2 mm

STROKE CAPACITY = 68ccm

Compress. ratio = 1:13
