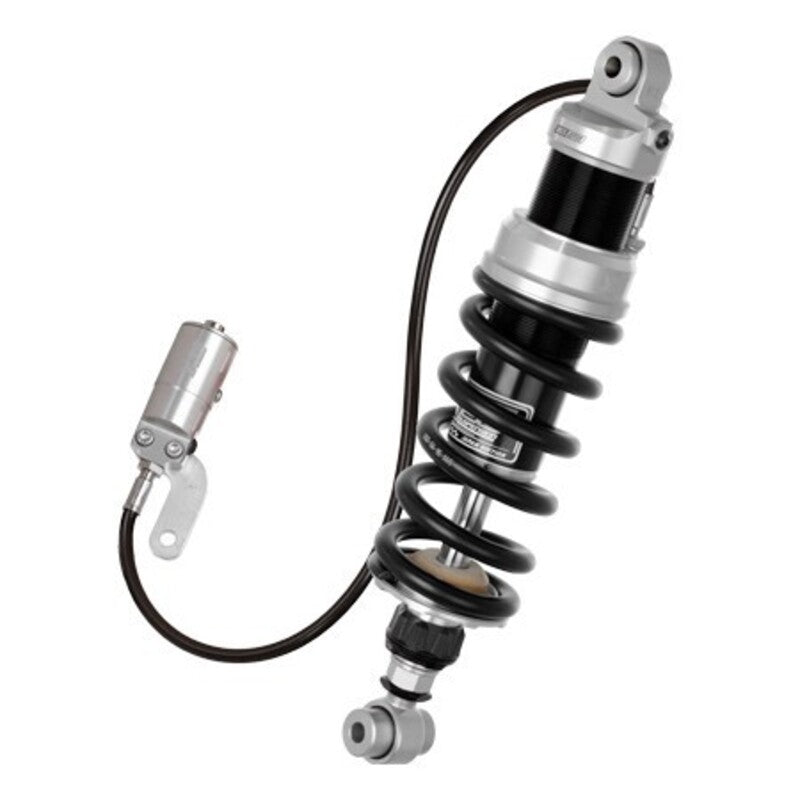

YSS REAR SHOCK TOPLINE

Product information "Suspension strut mono YSS adjustable MA456-350H1RL-06-88"

Frame aluminium body, shock absorber hydraulically adjustable in spring preload and rebound (30 clicks).The adjustment of the spring preload is connected to the shock absorber by a hose and thus facilitates access.The length of the shock absorber is adjustable by +-5mm.

Type: gas pressure

Attachment at the top: Eye

Internal diameter eyelet: 10 mm

Length: 350 mm

Fastening at the bottom: Eye

Internal diameter of eye: 10 mm

Adjustment options: Compression with high/low adjustmentSpring preload hydraulic (remote adjustable)Length adjustable +/- 5 mmRebound

Spring colour: black

Spring characteristic: 95

Spring length: 165 mm

Diameter of spring: 56 mm

Compensation reservoir: Yes

Manufacturer: YSS

Piston diameter: 45 mm

Piston rod diameter: 16 mm
