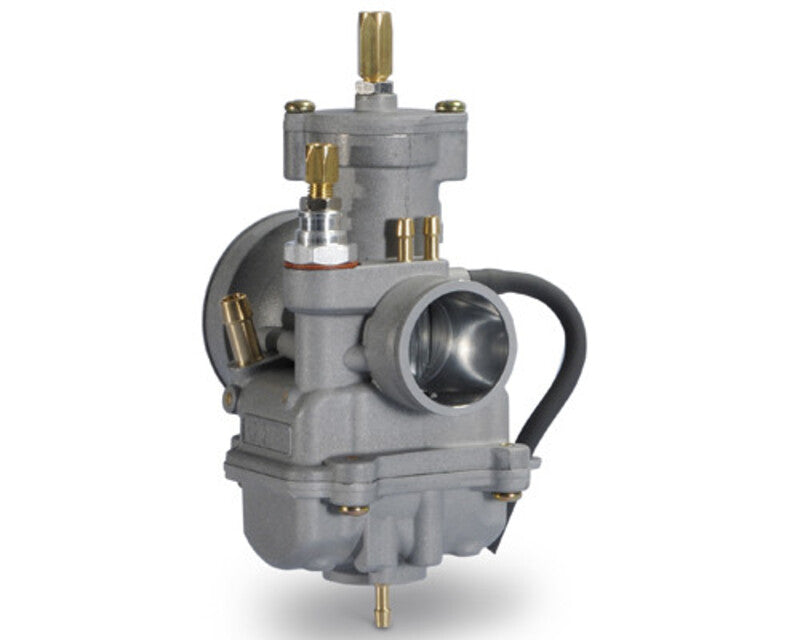

POLIN CARBURETOR POLINI CP D.17,5

THE FIRST POLINI CARBURETOR.BEYOND THE TECHNOLOGY"The first carburetor in the history of Polini is not only newbut it's a technologically improved carburetor. "This was the Polini’s great idea, and this is the great result: an innovative carburetor,whose every single component has been designed, developed and manufactured bythe company of BergamoAvailable in a wide range of diameters - 15/17.5/19/21/23/24 - it is entirely made ofaluminium, it has compact dimensions and it is 40% lighter than a traditionalcarburetor.The inlet pipe is very short and it features an exclusive concentric design and ageometry that optimizes the air flows when the gases pass through.The overflow of petrol in the atomizer has been designed to ensure correct flowdynamic at every position of the throttle valve when opens.The hole where the petrol enters and the larger needle allow the constant draft evenin the most extreme conditions.The float level, completely made of plastic, and the needle seal are carefully controlledin the production department to ensure the same standard of efficiency over time.These features considerably simplify the setup of the carburetor.Thanks to the extremely sophisticated calibration, the petrol-air flows, main and lowjets, have been designed to achieve the best performance with lower consumption.The compact size of the new carburetor is the result of a careful and meticulousmanagement of the inner space and the maximum efficiency of all the components,subjected to strict controls.To ensure an easy and precise assembly on the best sellers engines and itscompatibility to different filter boxes, both originals and racing, flanges with differentdiameters are available.A prestigious project like this has required a deep synergy of competences in thisfield. An extraordinary teamwork between the technical and the racing department toreach the goal which is visible to everybody: a technologically advanced product andof absolute reliability.A further confirmation by Polini which always makes the dreams of who is "racing"

inside come true.100% Made In Italy

POLINI: CARBURATORE POLINI CP 17,5

Calibrations

Main Jet 80

Low Jet 38

Needle 14/22

Valve 24x30

Atomizer Bush d.2,6
