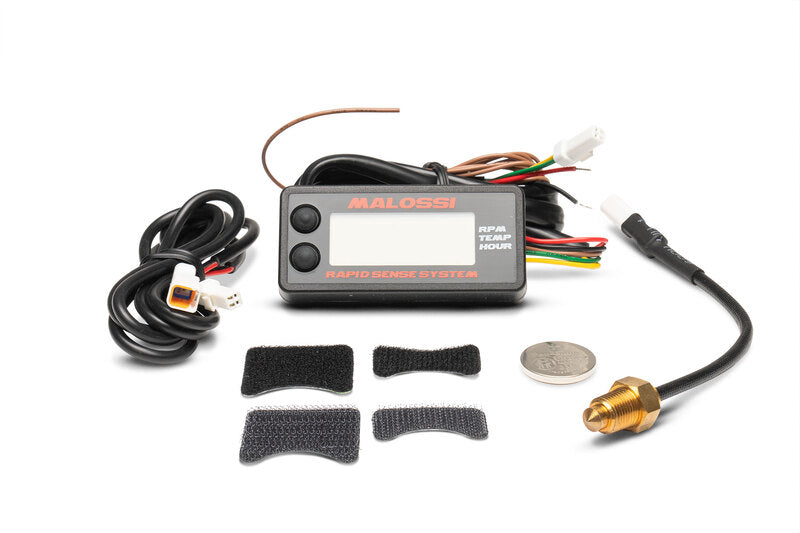

RAPID SENSE SYSTEM RPM TEMP HOUR METER

This meter allows to monitor three important parameters:

Engine RPM (RPM function): both Max RPM and instantaneous engine RPM can be recorded;

Cooling Temperature (TEMP function): will display the cooling temperature;

Engine working Hour (HOUR function): will show of how many hours the engine has been working in order to give precious information about when it is necessary to do maintenance.

The compact design and the presence of inner batteries allow to use this tool to measure engine parameters on different vehicles. Anyway, if preferred, connecting the charger supplied in the kit directly to a vehicle, it is possible to use the meter only on it.

Features:

Display field: 0 ~ 15.000 Rpm

Display unit: 10 rpm

Display gamma: -25 ° c ~ 250 ° c (-13 ° f ~ 482 ° f)

Display: 0.1 ° C (° f)

Backlight: blue colour

Total hour meter:

Display range: 0.0 ~ 999.9 hours

Display unit: 1 ora

Hour meter a / b

Display range: 0.0 ~ 999.9 hours

Display unit: 0,1 hours

Effective voltage: dc 12v

Battery type: cr 2032

Battery life time: 350 hours

Effective temperature range: -10 ° c ~ +60 ° c

Meter size: 69 x 32 x 16

Meter weight: 48g

The device is resistant to a few drops of water, but it is not waterproof (therefhours it is not recommended to place it under direct jets of water).
