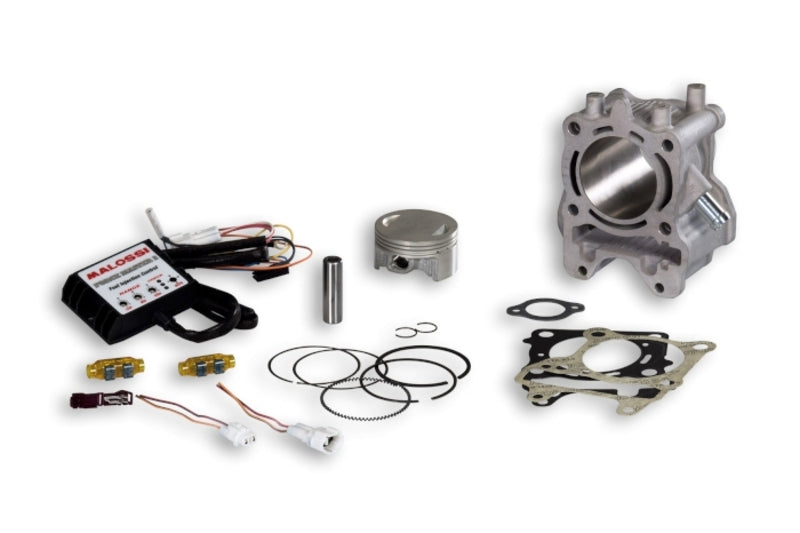

MALOS CYLINDER 61 ALU AXE 13 H-20

Products reserved exclusively for racing in specifically designed locations according to the provisions of the competent sporting authorities. We disclaim all liability for improper use.

Force Master is the innovative CDI which allows to change the injection in order to fit perfectly the Malossi 4-stroke cylinder kit. This CDI has been scheduled with different maps so as to be coupled perfectly with your vehicle whatever its setting is!

Complete cylinder I-TECH 4 STROKE

Material: primary aluminium alloy with a high content of hardened and tempered silicon, cylinder liner with silicon carbide coating in a galvanic nickel die and crossed smoothing with two diamond passages with very limited tolerances.

Machining: on machine tools with high precision numerical control.

Cylinder-piston connection with an allowance of 0.05 mm.

Recalculated and upgraded heat exchange surfaces.

CDI Force Master

Carburation adjusting

± 6% at min/medium/max

RPM limiter : + 1000 RPM

4 different maps

Piston

Ultra compact with 3 rings.

Material: special aluminium alloy with high silicon content, low thermal expansion and a tin facing on the sliding surfaces.

Machining on machine tools with numerical control.

Lightened and reinforced.

Upgraded heat exchange surfaces.

Piston rings

Special rings with high sliding ease and very high mechanical resistance.

I° ring compression in nitrided and chromium steel.

II° special cast iron ring.

Three piece scraper ring made of chromiumplated special steel alloy.
