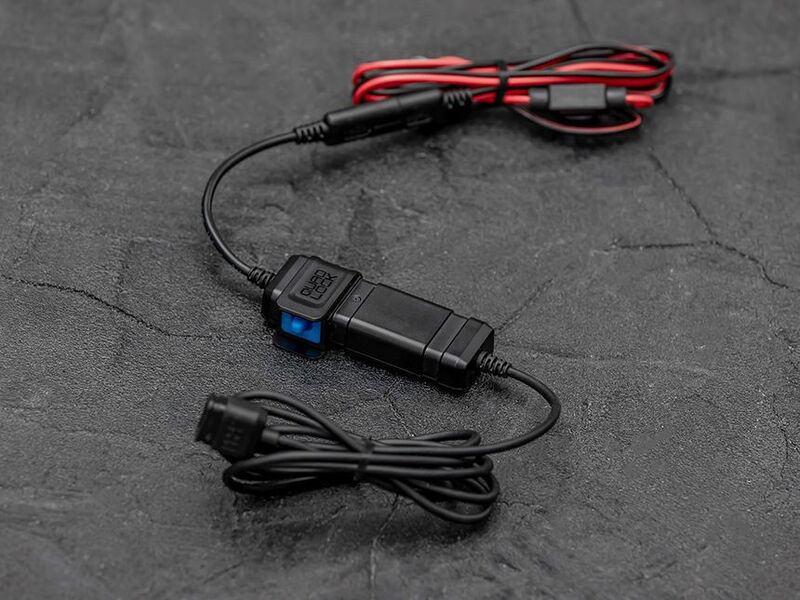

QUADL WATERPROOF 12V USB SMART ADAPTOR

The Quad Lock® Waterproof 12V to USB Smart Adaptor comes with everything needed to power your Quad Lock® Weatherproof Wireless Charging Head from your motorcycle, boat or caravan.

MULTIPLE SWITCHING STATES

Easily toggle the Smart Adaptor between On, Off, and Auto. Use On when connecting the Smart Adaptor to constant 12V - 24V supply, such as your boat or caravan.

Use Auto function to keep the device off until input voltage rises above 13.5V and turn off when input voltage drops below 12.5V. Perfect for your motorcycle, ATV, etc, to avoid battery drain.

REVERSE POLARITY PROTECTION AND IN-LINE SAFETY FUSE

Reverse Polarity Protection saves your battery in the instance the Ring Terminal Cables are connected to the incorrect battery terminals.

And the in-line 3A rated fast blow fuse protects from battery drain in rare case if there were a fault.

Included :

1 x Quad Lock® Waterproof 12V to USB Smart Adaptor with 1.5M USB-A female port and 10cm SAE cable hard wired

1 x 1M SAE to ring terminal cable with an in-line fuse

1 x USB-A sealing boot for USB-A to USB-C cable supplied with Weatherproof Wireless Charging Head

5 x Zip ties

Tech Specs

Output: USB-A up to 18W max (5V/3A, 9V/2A, 12V/1.5A)

Input: 12V - 24V DC

Auto switching mode provides power only when engine is running to avoid battery drain

Reverse polarity protection

In-line safety fuse

Waterproof 12V to USB Smart Adaptor housing made from polycarbonate construction

TPU Toggle Switch

PVC cables, SAE, USB-A and Ring Terminals over-moulds

Brass Ring Terminals

IP66 rated Waterproof 12V to USB Smart Adaptor unit and cable housing

IP64 rated USB seal boot cover

INCLUDED IN BOX

1x Waterproof 12V to USB Smart Adaptor with 1.5m USB-A Female Port and 10cm SAE Cable, 1x 1m SAE to Ring Terminal Cable with in-line fuse, 1x USB-A Seal Boot 5x 5mm x 250mm Zip Ties
