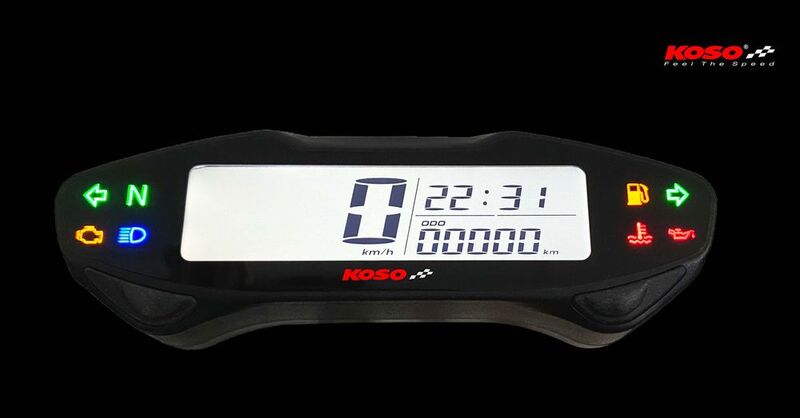

KOSO DB EX-03 SPEEDOMETER

Compact, lightweight, multifuncitonal - the DB EX-03 speedometer serves as a speed indicator, odometer, (operating) hour meter, clock, stopwatch, voltmeter, shows the trip, maintenance mileage and records values such as maximum speed, maximum voltage, and average speed.

Equipped with indicator lights for engine oil, low fuel level, water temperature, high beam, indicators, and engine light, the 70g light DB EX-03 speedometer impresses across the board with a size of only 120mm x 38.8mm x 34.2mm

SpeedometerDisplay range: 0 ~ 360 km/h (0 ~225 mph) Display unit: km/h alternatively mphOdometerDisplay range: 0 ~ 99,999 km (miles), automatic reset after 99,999 km (miles)

Day counter A, BDisplay unit: 1 km (mile) Display range: 0.0 ~ 9,999.9 km (miles),automatic reset after 9,999.9 km (miles)

Hour counterDisplay unit: 0.1 km (mile) Display range: 0 ~ 99,999 hoursDisplay unit: 1 hour

Hour meter A/BDisplay range: 0~9,999.9 hours, automatic reset after 9,999.9 hoursDisplay unit: 0.1 hour

ClockDisplay range: 00:00 ~ 23:59

VoltmeterDisplay range: 8.0 ~ 18.0 V DCDisplay unit: 0.1 V DC

StopwatchSetting range: 0:00:00 ~ 9:59:99Setting unit: 0.01 sec.

Maintenance odometer readingSetting range: 300 ~ 5,000 km, can be cleared manually.manually.Setting unit: 1 km

MAX. RecordingAverage speed: 0 to 360 km/h(0 to 225 mph)Max. Speed: 0 to 360 km/h (0 to 225 mph) Max. Voltage: 8.0 ~ 18.0 V DC

Internal battery levelDisplay range: 4 levels

Operating temperature-10 ~ +60°C

Size of the meter 120.0 x 38.8 x 34.2 mm

SpecificationJIS D 0203 S2

Weight of the meter Approx. 70 g

Indicator lampRight indicator lamp (green)Engine oil lamp (red)Low fuel warning light (amber) Water temperature light (red)Neutral lamp (green) High beam light (blue)Left indicator lamp (green)Engine lamp (yellow)
