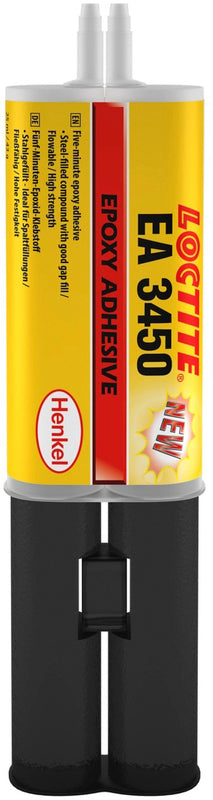

LOCTI EA3450 ADHESIVE EPOXI 5 MIN IRON

LOCTITE EA 3450, Epoxy, Bonding

LOCTITE® EA 3450 is a two component epoxy adhesive which cures rapidly at room temperature after mixing. It is a metal bonding adhesive which develops high strength. The gap filling properties make this adhesive system suitable for rough and poorly fitting surfaces made from metal, ceramic, rigid plastics or wood. Applications include bonding aluminum window frames and GRP panels.

Two components - requires mixing

Technical Information

Coefficient of Thermal Expansion (CTE), Above Tg 160.0 ppm/°C

Coefficient of Thermal Expansion (CTE), Below Tg 53.0 ppm/°C

Cure Schedule, @ 22.0 °C 1.0 wk.

Cure Type Room Temperature (Ambient) Cure

Glass Transition Temperature (Tg) 37.0 °C

Mix Ratio, by Volume 1 : 1

Mix Ratio, by Weight 1 : 1

Number of Components 2 Part

Physical Form Paste

Shore Hardness, ISO 868 68.0

Storage Temperature 8.0 - 21.0 °C

Technology Epoxy

Mixed

Color, Mixed Silver

Pot Life, ISO 9514 Mixed @ 25.0 °C 20 g mass 5.0 min.

Resin

Casson Viscosity, Plate-plate, Resin @ 25.0 °C 25.0 Pa∙s

Color, Resin Black

Specific Gravity, Resin @ 25.0 °C 1.7

Hardener

Casson Viscosity, Plate-plate, Hardener @ 25.0 °C 40.0 Pa∙s

Color, Hardener White

Specific Gravity, Hardener @ 25.0 °C 1.8
