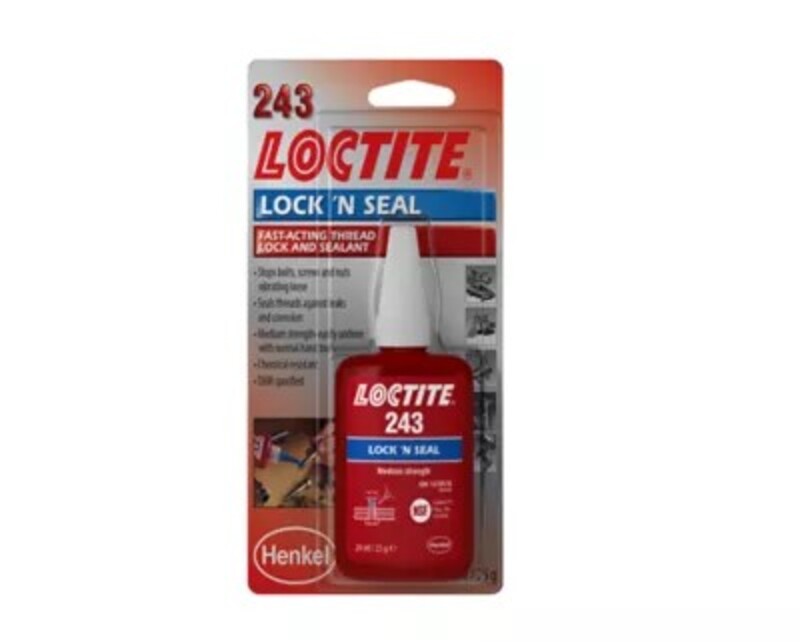

LOCTI 243 EPIG THREADLOCKER MED STRENGTH

LOCTITE 243 is a medium strength blue threadlocking adhesive that seals and secures metal nuts and bolts to prevent loosening due to shock and vibration.

LOCTITE® 243 is a general purpose threadlocker that provides a medium strength bond. LOCTITE 243 works on all metals, including passive substrates such as stainless steel, aluminum and plated surfaces. It is proven to be tolerant of minor contamination due to industrial oils, e.g., motor oils, corrosion prevention oils and cutting fluid.

Prevents loosening on vibrating assemblies, e.g. pumps, gear boxes or presses

Works on all metals, including passive substrates (e.g. stainless steel, aluminum, plated surfaces)

Proven to tolerate minor contamination by industrial oils, e.g. motor oils, corrosion prevention oils and cutting fluids

Permits disassembly with hand tools for servicing

Technical Information

Application Method Dispense Gun, Dispense System, Manual

Application Temperature -55.0 - 180.0 °C (-65.0 - 360.0 °F )

Applications Threadlocking

Breakaway Torque, M10 Steel Nuts/Bolts ~26.0 N·m (230.0 in./lb. )

Color Blue

Cure Type Anaerobic Cure

Fixture Time 10.0 min.

Key Characteristics Disassembly: Removable, Fluorescent, General Purpose, Oil Tolerant, Primerless, Strength: Medium Strength, Thixotropic

Physical Form Liquid

Prevail Torque, M10 Steel Nuts/Bolts 5.0 N·m (40.0 in./lb. )

Specific Gravity, @ 23.0 °C 1.08

Substrates Metal, Metal: Passive Metal

Technology Acrylic

Viscosity, Speed 20 RPM 2150.0 mPa·s (cP)
