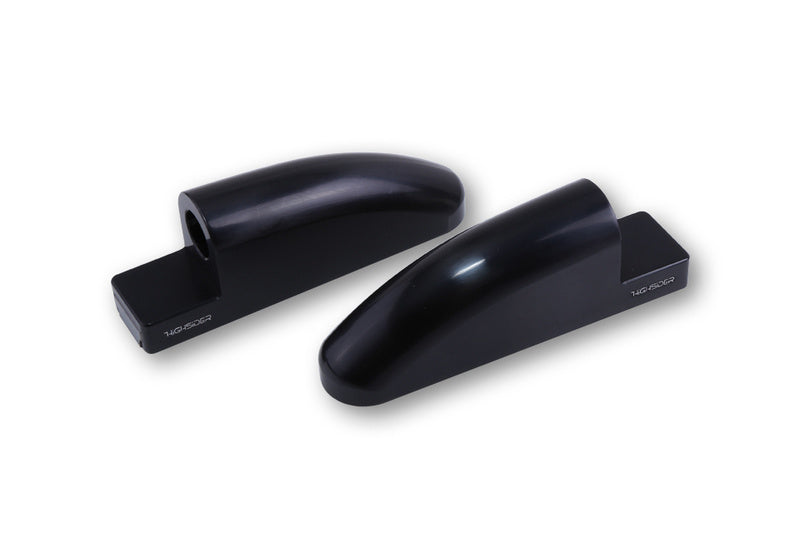

HIGHS MIRROR ADAPTER FB-1, LONG

HIGHSIDER pro CNC fairing mirror adapter FB-1, short or long, set.

The CNC fairing mirror adapters are attached to the fairing where the OEMfairing mirrors were originally installed.A special screw adapter (M6, M8) is screwed into the handlebar mirror, e.g. HIGHSIDER pro VICTORY 301-027 (not included), which in turn is attached to the CNC fairing mirror adapter.

Dimensions, short version:Length: 61 mmWidth: 18 mmScrew hole spacing: 8-43 mm

Dimensions, long version:Length: 77.5 mmWidth: 18 mmScrew hole spacing: 8-59 mm

Scope of delivery:One set includes:2 x CNC fairing mirror adapters, short2 x screw adapters, M62 x screw adapters, M84 x M6 x 30 mm screws2 x M6 x 15 mm screws4 x M6 self-locking nuts4 x washers D.9.8 x 6 x 1.3 mm4 x washers D.11.8 x 6 x 1.4 mm4 x bushings D.10.4 x 6 x 7 mm4 x bushings D.11 x 6 x 10 mm4 x mirror adapters for attachment to the holder

Notes:- For mirrors 301-027, 301-050, 301-447, 301-573, 301-580, and 301-582.- CNC fairing mirror adapter long, item no. 304-030- CNC fairing mirror adapter short, item no. 304-029
