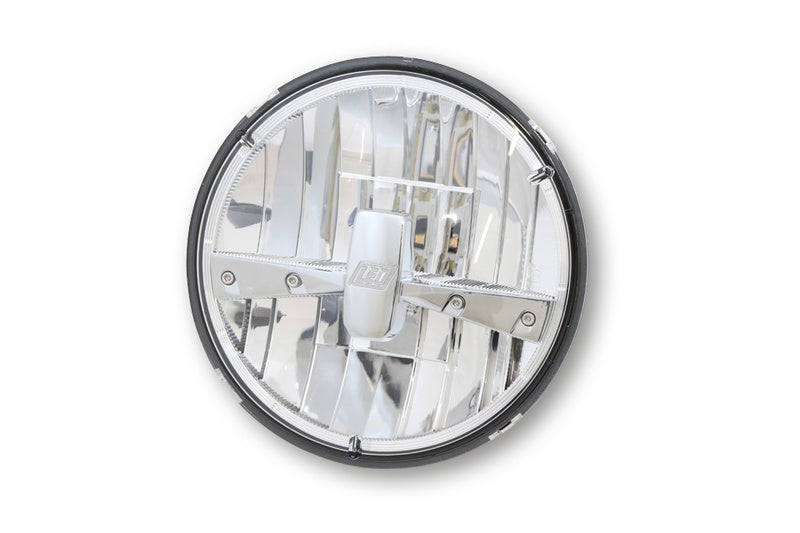

HIGHS HEADLIGHT INSERT TYP 3, CHR

HIGHSIDER pro Type 3 LED Headlight round Insert, high-beam, low-beam and parking light, E-marked.

This round, chrome-plated reflector with black or chrome-plated bezel has high beam, low beam and parking light functions and emits an asymmetrical luminous flux – only permitted for right-hand traffic, E-approved.

Dimensions:

Diameter A = 177 mm

Diameter GA = 168 mm

Diameter I = 160 mm

T = 61 mm

R = 10 mm

Connections:

Black cable = Ground (-)

Red cable = Low beam (+), Power consumption: at 12 Volt 18 Watt approx. 1132 Lumen.

White cable = high beam (+), power consumption: at 12 Volt 30 Watt approx. 1770 Lumen.

Brown cable = parking light (+), power consumption: at 12 Volt 0.7 Watt

Scope of supply: 1 piece

Notes:

Application asymmetrical, approved for right-hand traffic only.
