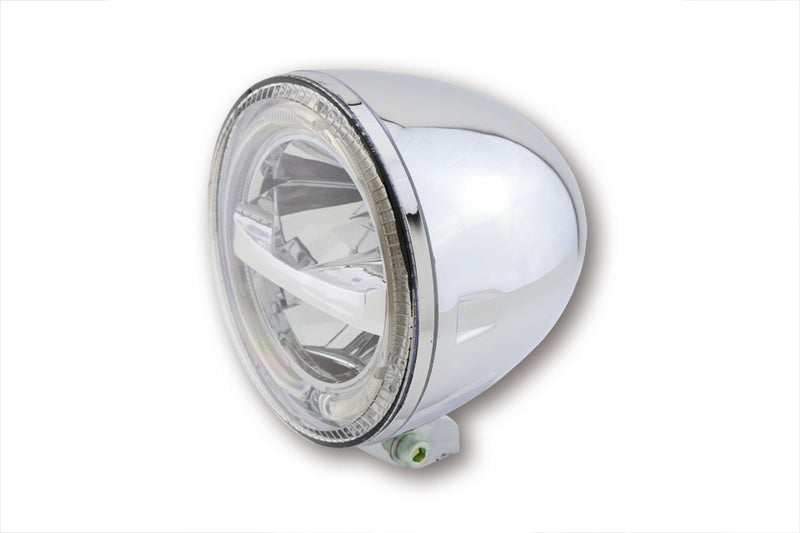

HIGHS CIRCLE MAIN HEADLIGHT, CHR

HIGHSIDER pro Circle,  5 3/4" LED headlight with DRL / PL, metal housing, lower mounting, E-approved.

The Light Guide technology produces a very homogeneous light ring with daytime running and parking light function. The CIRCLE headlight comes in a high quality metal housing, either for the bottom or side mounting, in black or chrome.

Dimensions:

Diameter of headlight insert: 146.5 mm

Depth: 167 mm with glass.

Fixing: bottom with M6 mounting screws.

Connections:

12,5 Volt DC

3 Connectors:

Green Cable = Ground

White Cable = Low Beam

Blue Cable = High Beam

Brown Cable = Parking Light

Red Cable = Daytime Running Light

Supplied:

1 x main headlamp

2 x hexagon socket screws

2 x 4 mm washers

2 x 2mm washers
