HIGHS HEADLIGHT BRACKET TYPE 1, CHR

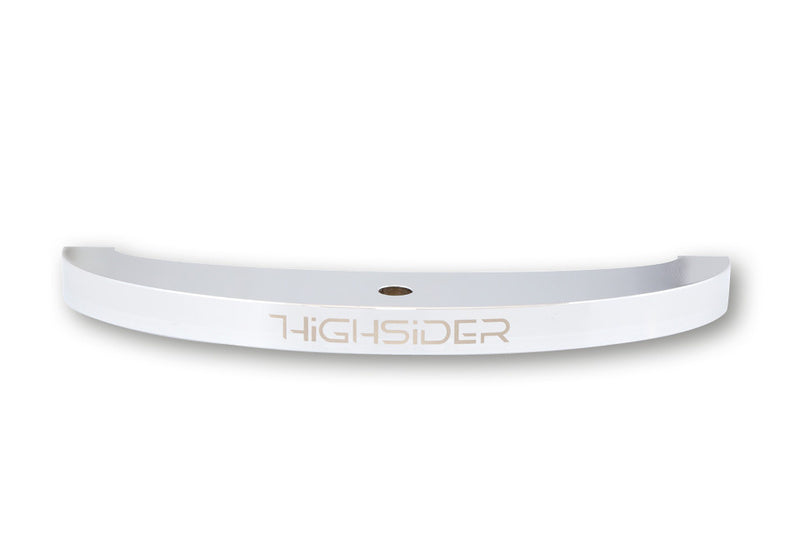

HIGHSIDER pro Bottom Type 1 aluminium headlight holder

CNC-milled holder made of aluminium for mounting headlights with lower mounting.Bore for fixing the headlight max. M 10. Suitable for forks with a width of 180 mm to 220 mm (measured from the centre of the fork standpipe to the centre of the fork standpipe).The exact width is adjusted by changing the mounting angle on the bracket using the additional standpipe clamps required.

Dimensions of the holder:

Overall width: 217 mm

Width: 200 mm (from attachment to attachment)

Depth: 37 mm

Height: 15 mm

Scope of supply: 1 piece

Note: You will also need the standpipe clamps specially manufactured by HIGHSIDER pro (each supplied as a pair) for the following standpipe diameters:

1108711002 (207-403) = 35 mm - 37 mm

1108711004 (207-405) = 38 mm - 41 mm

1108711006 (207-409) = 42 mm - 43 mm

1108711008 (207-419) = 50 mm, 52 mm, 54 mm
