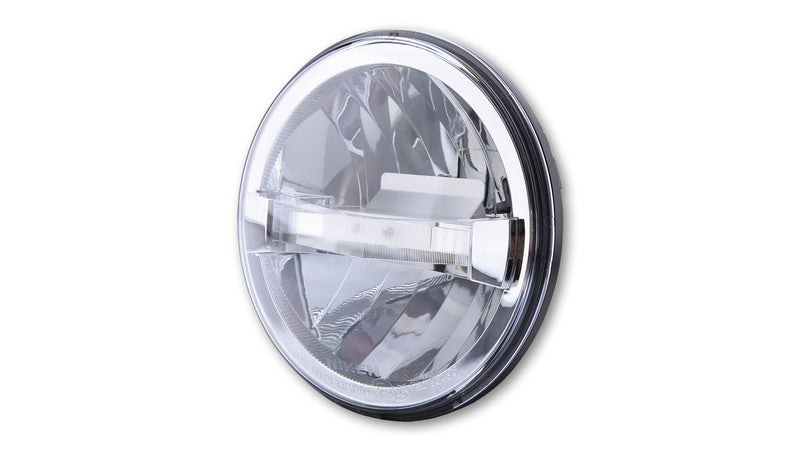

HIGHS HEADLIGHT INSERT TYP 4

This round, chrome-plated reflector with clear glass has a high beam, low beam, parking and daytime running light function. The daytime running light and position light are mounted in a central strip, so that a very beautiful optical image is created – the dipped beam lights up above the strip, the main beam light correspondingly below. The reflector emits an asymmetrical luminous flux – only approved for right-hand traffic.

Diameter A = 177 mm

Diameter GA = 168 mm

Diameter I = 160 mm

T = 61 mm

R = 10 mm

Connections:

Black cable = ground (-)

Blue cable = low beam (+), power consumption at 12V: 1.8A, 22W

Yellow cable = high beam (+), power consumption at12V: 1.3A, 13W

Black cable = ground (-)

TFL:

Black cable = ground (-)

Red cable = daytime running light (+), power consumption at 12V: 1.2A, 14W

White cable = position light (+), power consumption at 12V: 0,2A, 2,4W

Note 1:

– Use asymmetrical, approved for right-hand traffic only.

– The enclosed 3-pole standard plug must be installed by the customer after installing the reflector.

View of plug contacts:

Driving light (yellow) = right

Dipped beam (blue) = top

Ground (black) = left

Note 2:

Daytime running light can also be used on vehicles without light switch. The following components are required for this:

HIGHSIDER pro DRL CONTROL- BOX CB1 : Art. No. 1107969 (switches between low beam and daytime running light)
