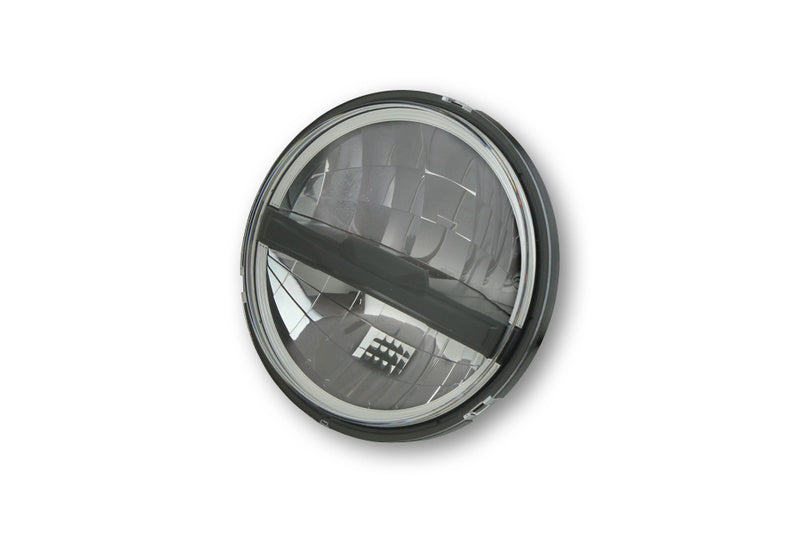

HIGHS HEADLIGHT INSERT TYP 5

HIGHSIDER pro LED main headlight insert Type 5, E-approved.

This round, chrome-plated reflector with black bezel and clear glass has a high beam, low beam and parking light function.

Also suitable as inserts in exchange for e.g. the following vehicles:Victory HighballVictory GunnerIndian Scout BobberIndian Scout Sixty

Dimensions : Diameter A = 145 mmDiameter GA = 133 mmDiameter I = 129 mmT = 60 mmR = 10 mmCable length: 400 mm

Connectors:Power Consumption = 3 Pin PlugBlack Cable = Ground (-)Red Cable = Low Beam (+)White Cable = High Beam (+)Brown Cable = Parking (+)

Supplied Contents: 1 Piece

Note: The enclosed 3-pole standard plug must be mounted after reflector installation.
