HIGHS HEADLIGHT INSERT TYP 2

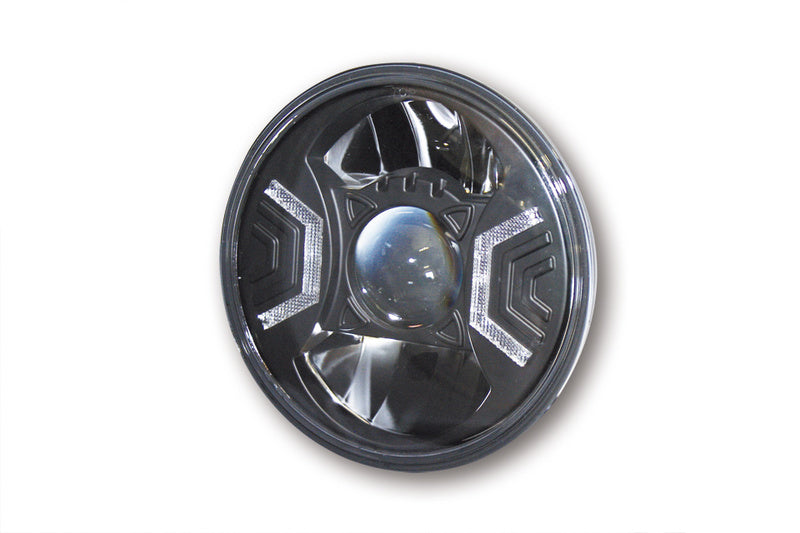

HIGHSIDER pro 7″ LED Headlight Insert TYPE 2

This round, black or chrome reflector has high beam, low beam and parking light functions and emits an asymmetrical luminous flux – only approved for right-hand traffic – E-approved.

See and be seen Give your bike an unmistakable style!

Dimension :Diameter A = 176 mmDiameter GA = 165 mmDiameter I = 160 mmDiameter Heat sink K = 99 mmT = 81 mmR = 8 mm

Technical data:Power consumption at 12,5 Volt DC:Dipped beam: approx. 1.6 amperes (20 watts).12 volts 1450 lumensOnly the upper reflector and the middle ellipsoid insert are lit.

High beam: approx. 1.6 amperes (20 watts).12 volts 1582 lumensOnly the upper and lower reflectors are lit. The middle ellipsoid insert stops when the headlight flashes.

Connections:The following 3 cables end in a combination plug:Black = ground (-)Red = plus high beam (+).Blue = Plus low beam (+).Additional 2 cables for parking light:Black = Ground (-)Red = Parking light (+)White= Connection for control indicator (can be used optionally)

Scope supplied: 1 piece

Notes:Asymmetrical use, approved for right-hand traffic only.The reflector can also be ordered complete with black housing:Art.-No. 1108496003.
