HIGHS HEADLIGHT INSERT TYP 9

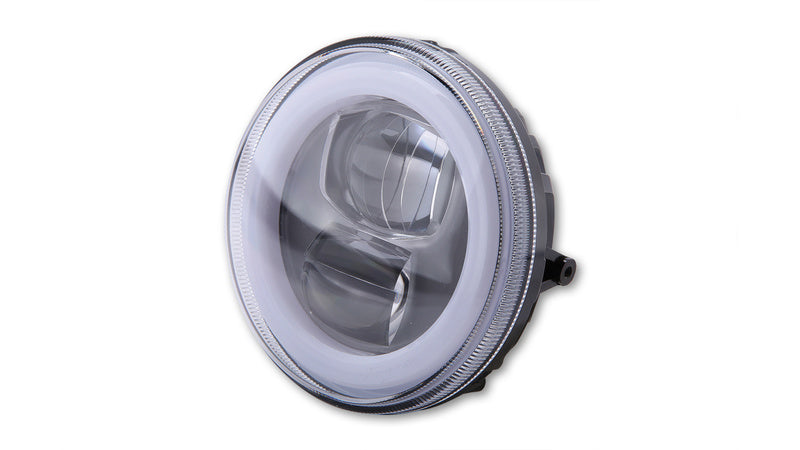

HIGHSIDER pro LED headlamp insert type 9, round, 120 mm, with parking light ring

Distance, dipped, and parking light function.Asymmetrical use

Dimensions:Legend see picture in the catalog at inserts.Diameter A = 120 mmDiameter GA = 113mmDiameter I = 114 mmT = 50 mmR = 15 mmCable length: 400 mmWeight: 0.430 kg

Connections:(3 pin plug)white = high beam (+)red = dipped beam (+)black = mass (-)Position light (round plug) = green (+)

Hints:View on plug contacts:High beam (white) = rightLow beam (red) = aboveMass (black) = left
