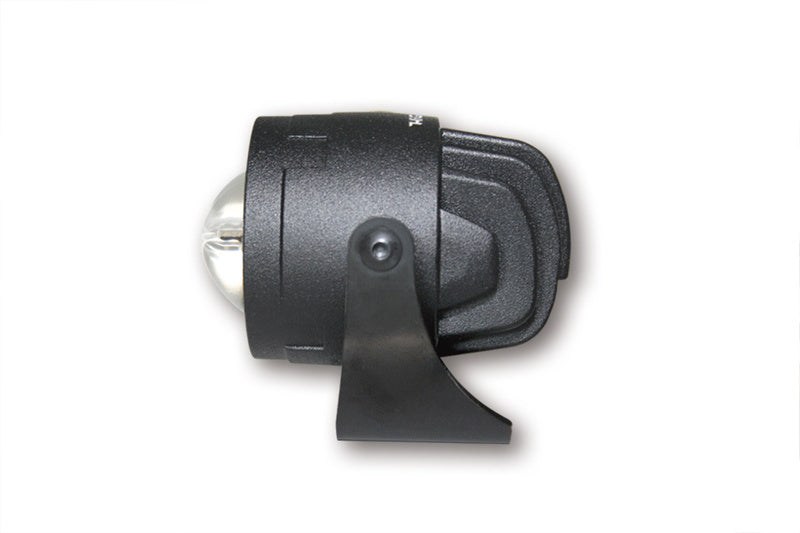

HIGHS SATELLITE HEADLIGHT LOW BEAM

HIGHSIDER pro Satellite LED low beam headlight with holder, E-approved

Small, powerful low beam headlight with 2 power LEDs (8 watts each) in a matt black aluminium housing with round lens, enclosed in a sturdy steel holder. The LED technology and the insert used produce a symmetrical, bright light for optimum perception of bikers by other road users.

Dimensions headlamp and holderLens diameter: 44 mmMaximum housing diameter: 50 mmHousing length: 62 mmBase plate holder with slotted holes: 33 x 33 mmMax. Width holder: 59 mm

Dimensions boxHeight: 16 mmWidth: 49 mmDepth: 19mm

Current consumption at 12.5 volts DC (suitable for 8 – 16 volts): approx. 0,7 Ampere, 520 Lumen

Connections:Red = Plus (+)The red cable is connected to ignition plus (+)Black = Ground (-)

Scope of supply: 1 piece

NoteThe headlight must not be connected without the supplied black electronics box (voltage control)!
