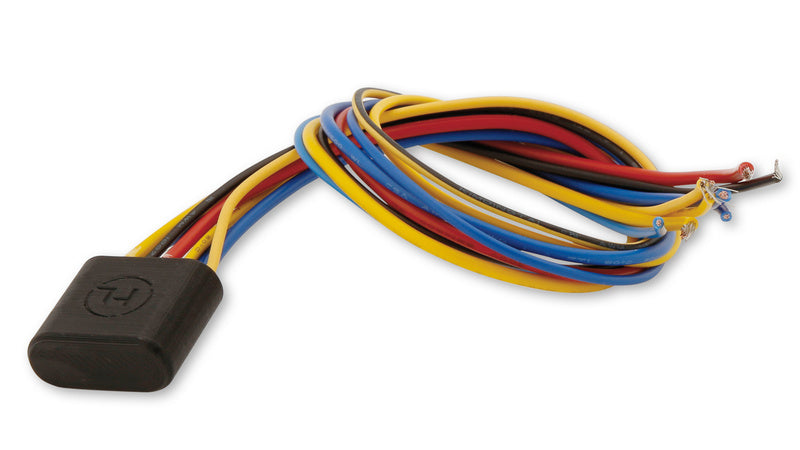

HIGHS FLASHER RELAY

Take control of your electrical system with the HIGHSIDER pro Two-Channel Electronic Relay.

With the two channels, this relay can control two independent circuits and provide unwanted damage to push buttons due to high current. Compatible with 6V to 14V systems with a max load of 40W. This relay can also convert pulsing ground turn signal inputs into positive signals, which is useful for Indian Motorcycles.

Dimensions:

Width: 17mm

Depth: 9.5mm

Height: 17mm

Weight: 9 g

Connections:

Red (thick) = ignition plus 12V(+)

Yellow (thick) = Working output CH2 (+)

Blue (thick) = Working output CH1 (+)

Yellow (thin) = Control plus signal CH2

Blue (thin) = Control plus signal CH1

Yellow/Black (thin) =Control minus signal CH2

Blue/black (thin) = control minus signal CH1

Maximum power: 40 Watt
