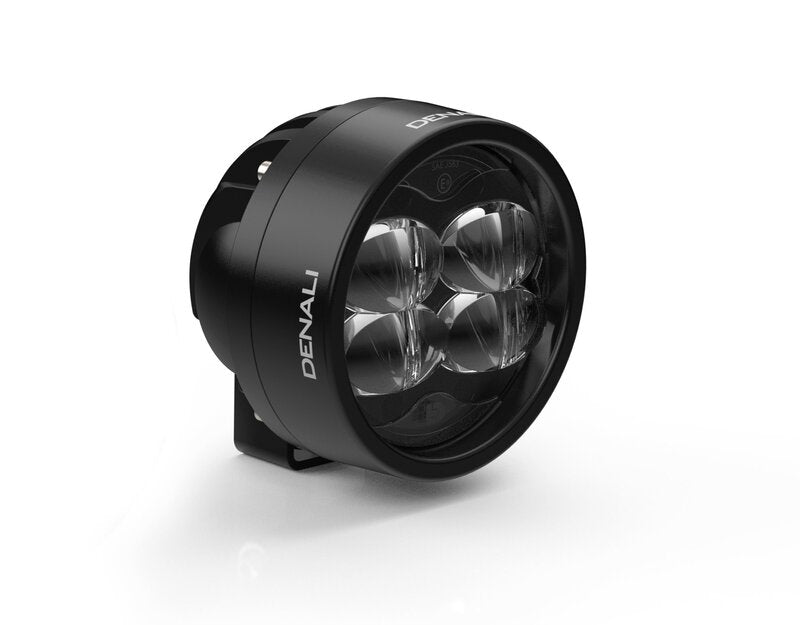

DENAL LIGHTNING D3 FOG

Our new D3 LED lights are built upon a decade of DENALI innovation to deliver the highest performing street-legal fog light to hit the market. Our proprietary fog optics were painstakingly engineered to reach the maximum allowable candela (beam distance) for each of the regulated lighting zones for both the North American SAE/DOT and European Union ECE regulations! The result is a truly unique lens that performs as well as it looks, capable of generating a super-crisp fog beam that is 450 feet long by 350 feet wide at 1 lux (per pair)! No other street-legal fog light even comes close!

Our D3 is also available in our signature TriOptic™ beam system that provides a spot and hybrid beam option (in the same kit) for drivers wanting uncompromised light output when you need it most.

Features

Best in class street-legal fog beam (SAE/DOT & ECE certified)

High-Intensity Series Cree LEDs outputting 2800 lumens per pod

DataDim™ 3-wire smart-dimming technology (compatible with all DENALI dimming controllers)

DrySeal™ Submersible Waterproof light can withstand the most extreme environments

Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels.

LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating

Low profile mounting bracket with stainless steel hardware included

Amber & selective yellow lenses available (sold separately)

Beam Performance (pair)

Beam Distance (at 1 lux): 450 feet (137 meters)

Beam Width (at 1 lux): 300 feet (91 meters)

Specs (single pod)

Pod Size: 3.5" (90mm) Round x 3.0" (76mm) Deep

LED: (4x) 11 Watt Cree XP-P LEDs

Power Draw: 40 Watts (3.3 Amps)

Lumens: 2800

DataDim™ Compatible: Yes

Operating Voltage: 9-32V DC

IP67 Waterproof & Submersible

Fog Lens Certifications: SAE/DOT J583 & ECE R19

What’s in the Box?

(1x) D3 LED Fog Light Pod

(1x) Hinge Mounts with M8 Stainless Steel Hardware

(1x) Wiring Pigtail
