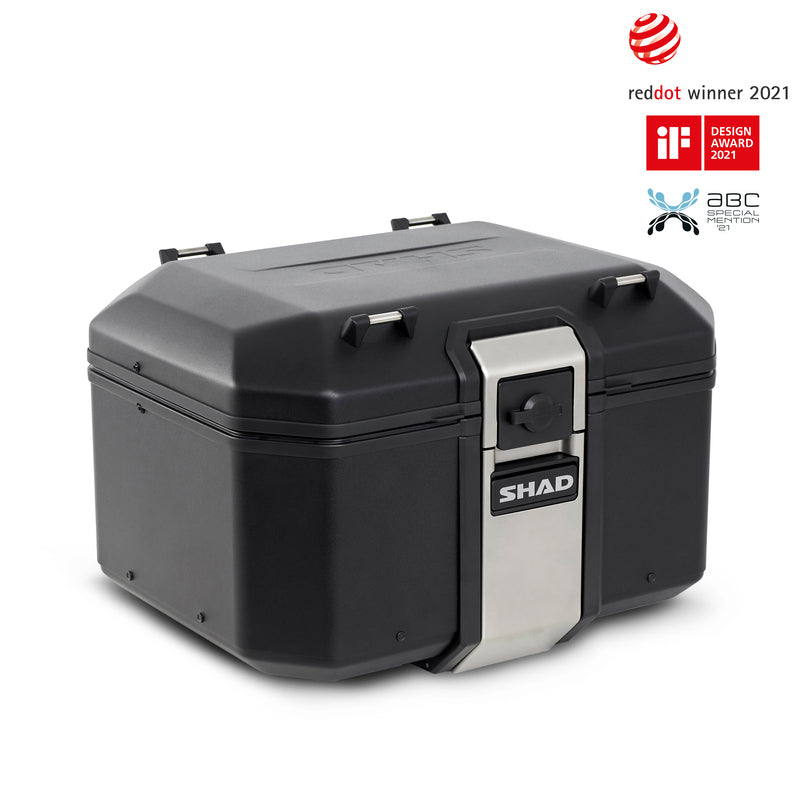

SHAD TOP CASE TR48 TERRA BLK

TOP CASE TR48 TERRA BLACK EDITION

The TR48 top case is 100% designed and manufactured in Barcelona and can accommodate one trail helmet or two helmets (full-face + open-face). It features an aerodynamic, integrated design made from hardened aluminium alloy with a wall thickness of just 1.2 mm – for maximum durability with minimum weight. The TERRA BLACK EDITION features a scratch-resistant black coating and is equipped with the patented TERRA Lock System.

Note: Mounting plate not included.

Description

The TR48 is entirely designed, developed and manufactured in Barcelona. Thanks to its robust construction from hardened aluminium alloy, it combines high stability with low weight. The durable powder coating provides additional protection for everyday use and off-road riding.

Capacity for 1 trail helmet or 2 helmets (modular + jet)

Integrated locking system ‘TERRA Lock System’ (patented)

One-handed operation for opening, closing, removing and transporting

Integrated, retractable carrying handle

Aerodynamic structure made from hardened aluminium alloy

Internal foam base reduces load movement

Rubberised seal protects against water and the elements

External hooks made from AISI 304 stainless steel for securing additional loads

SHAD Premium locking system with anti-theft and dust protection

Lock cylinder easily replaceable (top and side cases can be combined)

Installation requires SHAD Top Master Kit and mounting plate (not included)

Technical Specifications

Recommended maximum load: 10 kg

Dimensions: 49.5 / 41.8 / 32.2 cm

Weight: 7.4 kg

Material: Hardened aluminium alloy (1.2 mm)

Optional accessories

Backrest: D0RI75 (two-piece, polyurethane foam, imitation leather)

Inner bag: X0IB47

BMW key compatibility: Wunderlich cylinder Ref. 30164-000

Mounting plates (optional): D1B591PA, D1BTRPA, D1BTRPA2

On SHAD.es you’ll find further specific accessories to enhance your riding experience.
