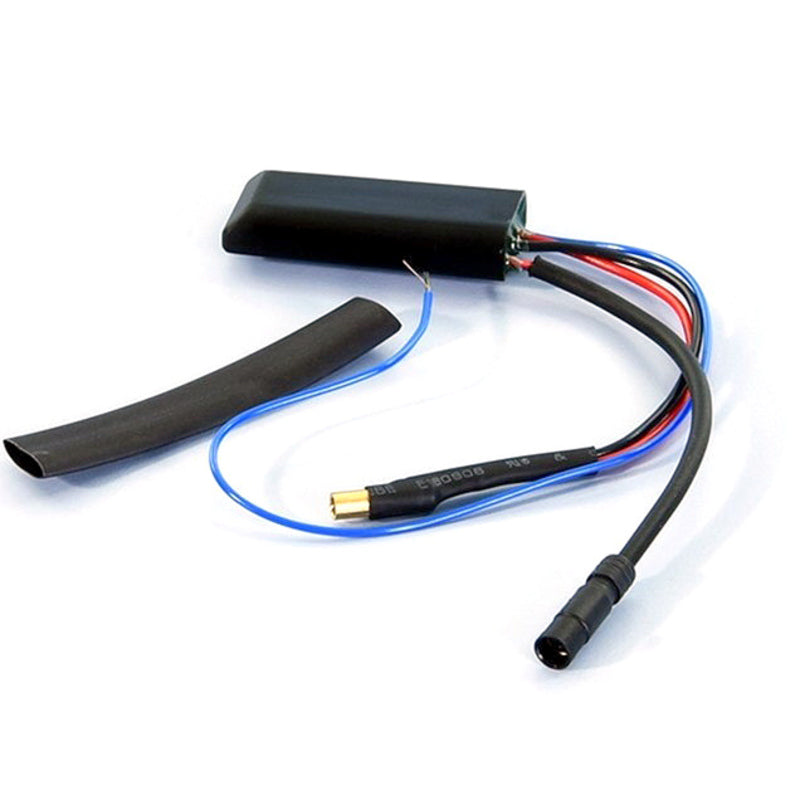

POLIN HI-SPEED E-BIKE SHIMANO STEPS E600

THIS ITEM SHALL BE USED IN ACCORDANCE WITH THE NATIONAL LAWS CONCERNING TRAFFIC; IT CANNOT BE USED ON PUBLIC ROAD.

Warnings and instructions inside. Polini Hi-Speed is an electronic device studied for E-bike motors with the aim to increase the pedal assist mode exploiting at all the performance that the motor can offer. The assembly takes only a few minutes. It does not require any setting because it is self-adjusting. The device does not require any battery since it is self-recharging. The speedometer will always show half of the actual speed, and the same for the Kms travelled. To know speed and kms travelled it is enough to double the figures.

HI-SPEED ACTIVATION/DEACTIVATION

Hi-Speed On/Off from the display: To turn the Hi-Speed device on or off, use the light switch.

Hi-Speed ALWAYS ON: Remove 1 cm of sheath from the red wire and the purple wire and connect them together (if possible, solder them with a tin soldering iron) and insulate them with the supplied heat-shrink sleeve.
