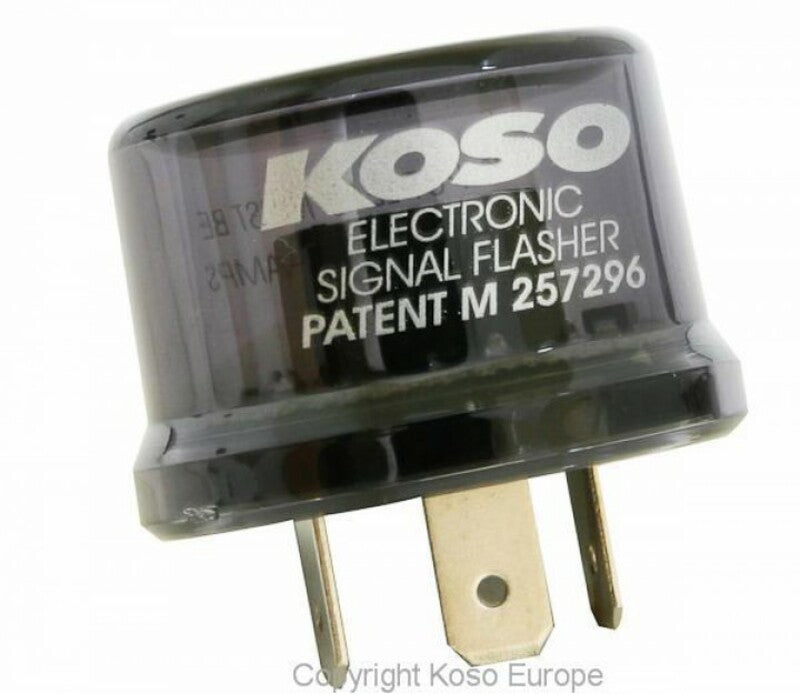

KOSO FLASHER 12V/15A

Koso 3-Pin Flasher Relay

12V, 1-80 Watt

Universal flasher relay usable for LED turn signals or a combination of standard and LED turn signals. Features fault detection, meaning that if one turn signal fails, the flashing frequency of the remaining functioning turn signal increases.

Characteristics:

Voltage: 12 V

Load range: 1 - 80 watts

Occupancy:

49 P = Battery input, (12V +)

31G = Ground (-), (GND)

49a L = Light (to the turn signal switch)

Connection at the relay:

Black on P (power supply 49)

Braun (49a) L (Signal)

Green at 31(-) (GND)

For vehicles with 3-way connector and 2-pin assignment (49, 49a):

Green (separately) to GND (31) and to ground

For vehicles with 3-way connector and 3-pin assignment (49, 49a, 31):

Use green (adapter plug)

Mass:

Diameter: 37 mm

Height: 25 mm

Scope of delivery:

1 x Flasher relay

1 x ground cable

1 x Honda/Kawasaki/Yamaha adapter cable

1 x rubber holder
